ML22Q54 - 2-Channel Mixing Oki ADPCM Algorithm-Based Speech Synthesis LSI

OKI electronic

The ML22Q54 by OKI electronic is a 2-Channel Mixing Oki ADPCM Algorithm-Based Speech Synthesis LSI. Below is the official datasheet preview.

📥 Download Datasheet

ML22Q54 2-Channel Mixing Oki ADPCM Algorithm-Based Speech Synthesis LSI by OKI electronic - Datasheet Preview — Official preview page of the **ML22Q54** 2-Channel Mixing Oki ADPCM Algorithm-Based Speech Synthesis LSI datasheet (OKI electronic).

Datasheet Details

Part number	ML22Q54
Manufacturer	OKI electronic
File Size	253.13 KB
Description	2-Channel Mixing Oki ADPCM Algorithm-Based Speech Synthesis LSI
Datasheet	ML22Q54_OKIelectronic.pdf

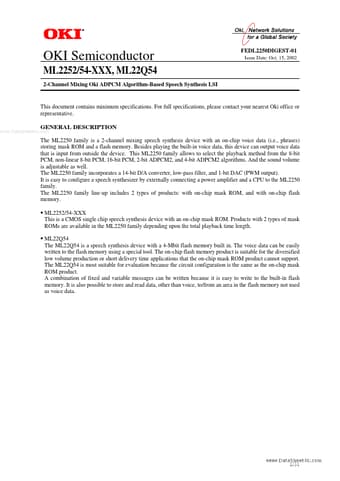

Additional preview pages of the ML22Q54 datasheet.

ML22Q54 Product details

Description

The ML2250 family is a 2-channel mixing speech synthesis device with an on-chip voice data (i.e., phrases) storing mask ROM and a flash memory.

Features

Type ML2252 ML2254 ML22Q54 www. DataSheet4U. com ROM capacity 1 Mbit 4 Mbit 4 Mbit Maximum playback time length (sec) (In 4-bit ADPCM2) FSAM = 4.0 kHz FSAM = 6.4 kHz FSAM = 8.0 kHz FSAM = 16 kHz FSAM = 32 kHz 64.5 261.1 261.1 40.3 163.2 163.2 32.2 130.5 130.5 16.1 65.2 65.2 8.0 32.6 32.6.
Non-linear 8-bit PCM, 8-bit PCM, 16-bit PCM, 2-bit ADPCM2, and 4-bit ADPCM2 algorithms.
Serial input/parallel input selectable.
Phrase control table function i. e. , user definable phr.
