ML22Q573 - 4-Channel Mixing Speech Synthesis LSI

Description

The ML22Q573-NNN, ML22Q573-xxx and ML2257X-xxx are 4-channel mixing speech synthesis LSIs with built-in FLASH/MASK ROM for voice data.

Features

  • by only using one of these LSIs.
  • Capacity of internal memory and the maximum voice production time (when HQ-ADPCM※1 method used) Product name ML22Q573-NNN/-xxx ML22573-xxx ML22572-xxx ROM capacity 4 Mbits 2 Mbits Maximum voice production time (sec) fsam = 8.0 kHz fsam = 16.0 kHz fsam = 32.0 kHz 161 80 40 79 39 19.

📥 Download Datasheet

Datasheet Details

Part number ML22Q573
Manufacturer LAPIS
File Size 2.07 MB
Description 4-Channel Mixing Speech Synthesis LSI
Datasheet download datasheet ML22Q573 Datasheet

📁 Similar Datasheet

  • ML22Q54 - 2-Channel Mixing Oki ADPCM Algorithm-Based Speech Synthesis LSI (OKI electronic)
  • ML22Q58 - 2-Channel Mixing Oki ADPCM Algorithm-Based Speech Synthesis LSI (OKI electronic)
  • ML2200 - 12-Bit Plus Sign Data Acquisition Peripheral (Micro Linear)
  • ML2201 - Speech Synthesizer LSI with on-chip 384K Mask ROM (OKI electronic componets)
  • ML2208 - 12-Bit Plus Sign Data Acquisition Peripheral (Micro Linear)
  • ML2252 - uP Compatible 8-Bit A/D Converters (Micro Linear)
  • ML2258 - 8-Bit A/D Converter (Micro Linear)
  • ML2259 - uP Compatible 8-Bit A/D Converters (Micro Linear)
  • ML2261 - High-Speed 8-Bit A/D Converter (Micro Linear)
  • ML2264 - 4-Channel High-Speed 8-Bit A/D Converter with T/H (S/H) (Micro Linear)
Other Datasheets by LAPIS

Full PDF Text Transcription

Click to expand full text

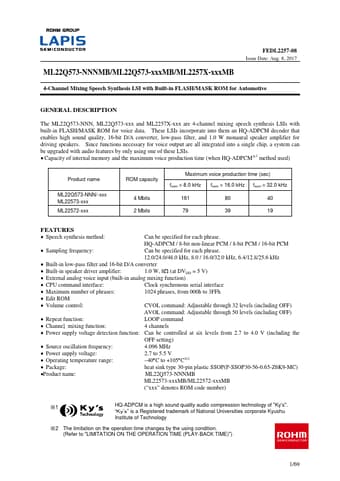

ML22Q573-NNNMB/ML22Q573-xxxMB/ML2257X-xxxMB FEDL2257-08 Issue Date: Aug. 8, 2017 4-Channel Mixing Speech Synthesis LSI with Built-in FLASH/MASK ROM for Automotive GENERAL DESCRIPTION The ML22Q573-NNN, ML22Q573-xxx and ML2257X-xxx are 4-channel mixing speech synthesis LSIs with built-in FLASH/MASK ROM for voice data. These LSIs incorporate into them an HQ-ADPCM decoder that enables high sound quality, 16-bit D/A converter, low-pass filter, and 1.0 W monaural speaker amplifier for driving speakers. Since functions necessary for voice output are all integrated into a single chip, a system can be upgraded with audio features by only using one of these LSIs.
