MSM80C39, MSM80C40 - CMOS 8-Bit Microcontroller

Name: MSM80C39
SKU: MSM80C39-515126

OKI electronic componets

📥 Download Datasheet

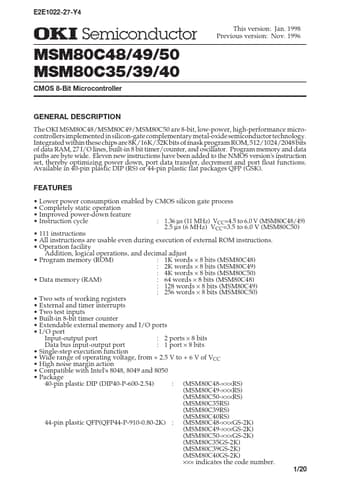

MSM80C39 Datasheet Preview — This datasheet PDF includes multiple part numbers: MSM80C39, MSM80C40. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MSM80C39, MSM80C40
Manufacturer	OKI electronic componets
File Size	149.39 KB
Description	CMOS 8-Bit Microcontroller
Datasheet	MSM80C40_OKIelectroniccomponets.pdf
Note	This datasheet PDF includes multiple part numbers: MSM80C39, MSM80C40. Please refer to the document for exact specifications by model.

MSM80C39 Product details

Description

The OKI MSM80C48/MSM80C49/MSM80C50 are 8-bit, low-power, high-performance microcontrollers implemented in silicon-gate complementary metal-oxide semiconductor technology.

Features

Lower power consumption enabled by CMOS silicon gate process.
Completely static operation.
Improved power-down feature.
Instruction cycle : 1.36 ms (11 MHz) VCC=4.5 to 6.0 V (MSM80C48/49) 2.5 ms (6 MHz) VCC=3.5 to 6.0 V (MSM80C50).
111 instructions.
All instructions are usable even during execution of external ROM instructions.
Operation facility Addition, logical operations, and decimal adjust.
Program memory (ROM) : 1K w.
