MSM80C85AHGS - 8-Bit CMOS MICROPROCESSOR

Download the MSM80C85AHGS datasheet PDF. This datasheet also covers the MSM80C85 variant, as both devices belong to the same 8-bit cmos microprocessor family and are provided as variant models within a single manufacturer datasheet.

Description

The MSM80C85AH is a complete 8-bit parallel; central processor implemented in silicon gate C-MOS technology and compatible with MSM80C85A.

Features

  • Power down mode (HALT-HOLD).
  • Low Power Dissipation: 50mW(Typ).
  • Single + 3 to + 6 V Power Supply.
  • 40 to + 85°C, Operating Temperature.
  • Compatible with MSM80C85A.
  • 0.8 ms instruction Cycle (VCC = 5V).
  • On-Chip Clock Gener.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MSM80C85_OKI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MSM80C88A 8-Bit CMOS MICROPROCESSOR OKI electronic componets
MSM80C154S CMOS 8-bit Microcontroller OKI electronic componets
MSM80C154S CMOS 8-bit Microcontroller ETC
MSM80C31F CMOS 8-Bit Microcontroller OKI electronic
MSM80C35 CMOS 8-Bit Microcontroller OKI electronic componets

Other Datasheets by OKI Electric

Part Number Description
MSM80C85AH 8-Bit CMOS MICROPROCESSOR
MSM80C85AHJS 8-Bit CMOS MICROPROCESSOR
MSM80C85AHRS 8-Bit CMOS MICROPROCESSOR
MSM80C85 8-Bit CMOS MICROPROCESSOR
MSM80C88A-10GS 8-Bit CMOS MICROPROCESSOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

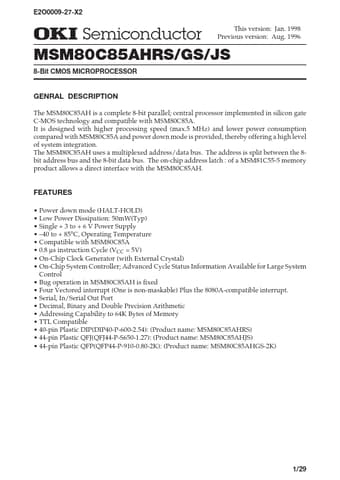

E2O0009-27-X2 ¡ Semiconductor¡ Semiconductor MTShMis8v0eCrs8i5oAn:HJRaSn./G19S9/8JS Previous version: Aug. 1996 MSM80C85AHRS/GS/JS 8-Bit CMOS MICROPROCESSOR GENRAL DESCRIPTION The MSM80C85AH is a complete 8-bit parallel; central processor implemented in silicon gate C-MOS technology and compatible with MSM80C85A. It is designed with higher processing speed (max.5 MHz) and lower power consumption compared with MSM80C85A and power down mode is provided, thereby offering a high level of system integration. The MSM80C85AH uses a multiplexed address/data bus. The address is split between the 8bit address bus and the 8-bit data bus. The on-chip address latch : of a MSM81C55-5 memory product allows a direct interface with the MSM80C85AH.
