MSM514400D - DRAM / FAST PAGE MODE TYPE

OKI electronic componets

📥 Download Datasheet

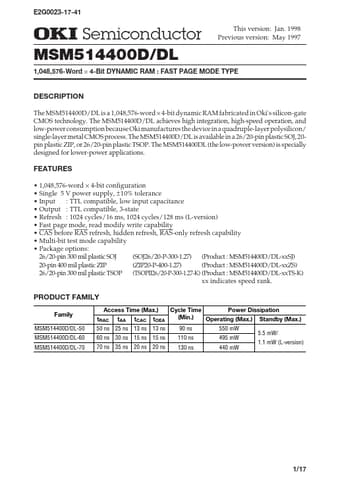

MSM514400D Datasheet Preview — Preview of MSM514400D PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MSM514400D
Manufacturer	OKI electronic componets
File Size	499.64 KB
Description	DRAM / FAST PAGE MODE TYPE
Datasheet	MSM514400D_OKI.pdf

MSM514400D Product details

Description

The MSM514400D/DL is a 1,048,576-word 4-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology.

Features

1,048,576-word.
4-bit configuration.
Single 5 V power supply, ± 10% tolerance.
Input : TTL compatible, low input capacitance.
Output : TTL compatible, 3-state.
Refresh : 1024 cycles/16 ms, 1024 cycles/128 ms (L-version).
Fast page mode, read modify write capability.
CAS before RAS refresh, hidden refresh, RAS-only refresh capability.
Multi-bit test mode capability.
Package options: 26/20-pin 300 mil plastic SO.
