MSM514400E - DRAM / FAST PAGE MODE TYPE

Description

The MSM514400E is a 1,048,576-word × 4-bit dynamic RAM fabricated in Oki’s silicon-gate CMOS technology.

The MSM514400E achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process.

Features

  • 1,048,576-word × 4-bit configuration Single 5V power supply, ± 10% tolerance Input Output Refresh : TTL compatible, low input capacitance : TTL compatible, 3-state : 1024 cycles/16 ms Fast page mode, read modify write capability CAS before RAS refresh, hidden refresh, RAS-only refresh capability Multi-bit test mode capability Package options: 26/20-pin 300mil plastic SOJ 26/20-pin 300mil plastic TSOP (SOJ2.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MSM514400A 1M x 4-Bit DRAM OKI Semiconductor
MSM514400AL 1M x 4-Bit DRAM OKI Semiconductor
MSM514400ASJ-70 CMOS 4M-Bit DRAM ETC
MSM514256A DRAM OKI Semiconductor
MSM514256B DRAM OKI Semiconductor

Other Datasheets by OKI Electric

Part Number Description
MSM514400D DRAM / FAST PAGE MODE TYPE
MSM514100D DRAM / FAST PAGE MODE TYPE
MSM514212 DRAM / FAST PAGE MODE TYPE
MSM514221B DRAM / FAST PAGE MODE TYPE
MSM514222B DRAM / FAST PAGE MODE TYPE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

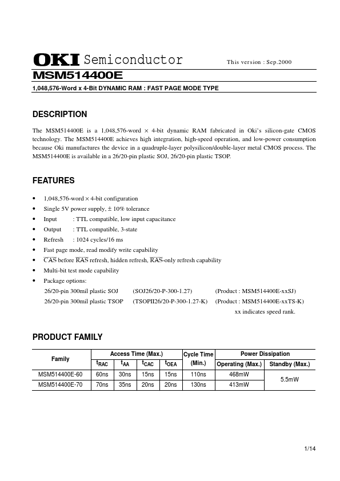

Semiconductor MSM514400E 1,048,576-Word x 4-Bit DYNAMIC RAM : FAST PAGE MODE TYPE This version : Sep.2000 DESCRIPTION The MSM514400E is a 1,048,576-word × 4-bit dynamic RAM fabricated in Oki’s silicon-gate CMOS technology. The MSM514400E achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM514400E is available in a 26/20-pin plastic SOJ, 26/20-pin plastic TSOP.
