MSM512200 - 1048576-Word x 2-Bit DYNAMIC RAM

OKI electronic componets

📥 Download Datasheet

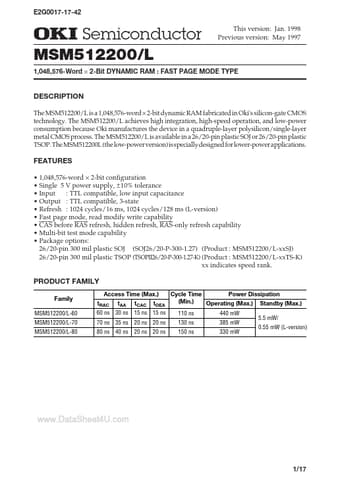

MSM512200 Datasheet Preview — Preview of MSM512200 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MSM512200
Manufacturer	OKI electronic componets
File Size	519.87 KB
Description	1048576-Word x 2-Bit DYNAMIC RAM
Datasheet	MSM512200_OKIelectroniccomponets.pdf

MSM512200 Product details

Description

The MSM512200/L is a 1,048,576-word 2-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology.

Features

1,048,576-word.
2-bit configuration.
Single 5 V power supply, ± 10% tolerance.
Input : TTL compatible, low input capacitance.
Output : TTL compatible, 3-state.
Refresh : 1024 cycles/16 ms, 1024 cycles/128 ms (L-version).
Fast page mode, read modify write capability.
CAS before RAS refresh, hidden refresh, RAS-only refresh capability.
Multi-bit test mode capability.
Package options: 26/20-pin 300 mil plastic SO.
