MSM512100 - 2097152-Word x 1-Bit DYNAMIC RAM

OKI electronic componets

📥 Download Datasheet

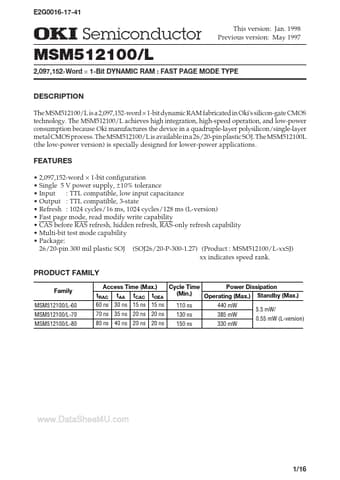

MSM512100 Datasheet Preview — Preview of MSM512100 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MSM512100
Manufacturer	OKI electronic componets
File Size	295.12 KB
Description	2097152-Word x 1-Bit DYNAMIC RAM
Datasheet	MSM512100_OKIelectroniccomponets.pdf

MSM512100 Product details

Description

The MSM512100/L is a 2,097,152-word 1-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology.

Features

2,097,152-word.
1-bit configuration.
Single 5 V power supply, ± 10% tolerance.
Input : TTL compatible, low input capacitance.
Output : TTL compatible, 3-state.
Refresh : 1024 cycles/16 ms, 1024 cycles/128 ms (L-version).
Fast page mode, read modify write capability.
CAS before RAS refresh, hidden refresh, RAS-only refresh capability.
Multi-bit test mode capability.
Package: 26/20-pin 300 mil plastic SOJ (SOJ26.
