MSC23132D - DRAM-MODULE

Name: MSC23132D
SKU: MSC23132D-706269

OKI electronic componets

📥 Download Datasheet

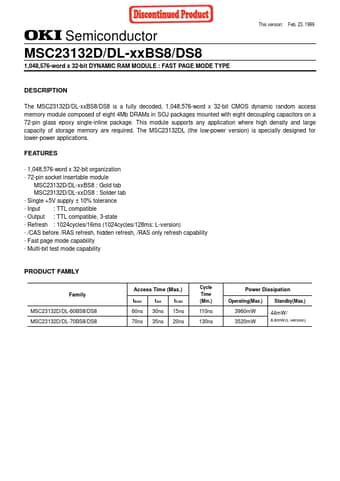

MSC23132D Datasheet Preview — Preview of MSC23132D PDF

Datasheet Details

Part number	MSC23132D
Manufacturer	OKI electronic componets
File Size	142.43 KB
Description	DRAM-MODULE
Datasheet	MSC23132D_OKIelectroniccomponets.pdf

MSC23132D Product details

Description

The MSC23132D/DL-xxBS8/DS8 is a fully decoded, 1,048,576-word x 32-bit CMOS dynamic random access memory module composed of eight 4Mb DRAMs in SOJ packages mounted with eight decoupling capacitors on a 72-pin glass epoxy single-inline package.

Features

1,048,576-word x 32-bit organization.
72-pin socket insertable module MSC23132D/DL-xxBS8 : Gold tab MSC23132D/DL-xxDS8 : Solder tab.
Single +5V supply ± 10% tolerance.
Input : TTL compatible.
Output : TTL compatible, 3-state.
Refresh : 1024cycles/16ms (1024cycles/128ms: L-version).
/CAS before /RAS refresh, hidden refresh, /RAS only refresh capability.
Fast page mode capability.
Multi-bit test mode capability.
