MSC2313258D - DRAM-MODULE

OKI electronic componets

📥 Download Datasheet

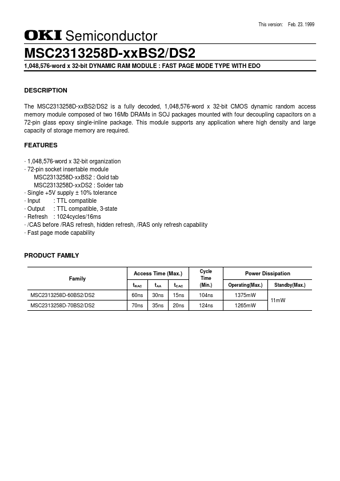

MSC2313258D Datasheet Preview — Preview of MSC2313258D PDF

Datasheet Details

Part number	MSC2313258D
Manufacturer	OKI electronic componets
File Size	106.04 KB
Description	DRAM-MODULE
Datasheet	MSC2313258D_OKIelectroniccomponets.pdf

MSC2313258D Product details

Description

The MSC2313258D-xxBS2/DS2 is a fully decoded, 1,048,576-word x 32-bit CMOS dynamic random access memory module composed of two 16Mb DRAMs in SOJ packages mounted with four decoupling capacitors on a 72-pin glass epoxy single-inline package.

Features

1,048,576-word x 32-bit organization.
72-pin socket insertable module MSC2313258D-xxBS2 : Gold tab MSC2313258D-xxDS2 : Solder tab.
Single +5V supply ± 10% tolerance.
Input : TTL compatible.
Output : TTL compatible, 3-state.
Refresh : 1024cycles/16ms.
/CAS before /RAS refresh, hidden refresh, /RAS only refresh capability.
Fast page mode capability.
