MR27T1602F - 1M-Word x 16-Bit or 2M-Word x 8-Bit P2ROM

OKI electronic componets

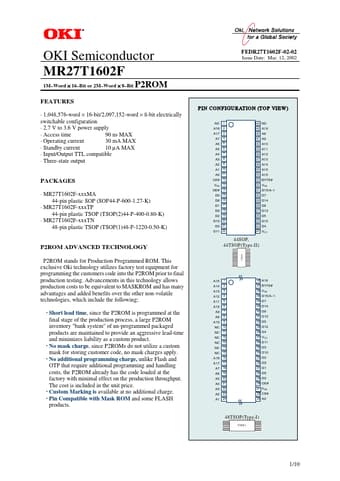

MR27T1602F Datasheet Preview — Preview of MR27T1602F PDF

Datasheet Details

Part number	MR27T1602F
Manufacturer	OKI electronic componets
File Size	120.28 KB
Description	1M-Word x 16-Bit or 2M-Word x 8-Bit P2ROM
Datasheet	MR27T1602F_OKIelectroniccomponets.pdf

MR27T1602F Product details

Description

Pin name D15 / A 1 A0 to A19 D0 to D14 CE# OE# BYTE# VCC VSS NC Address inputs Data outputs Chip enable input Output enable input Word / Byte select input Power supply voltage Ground No connect Functions Data output / Address input 2/10 FEDR27T1602F-02-02 OKI Semiconductor MR27T1602F/P2ROM

Features

1,048,576-word × 16-bit/2,097,152-word × 8-bit electrically switchable configuration.
2.7 V to 3.6 V power supply.
Access time 90 ns MAX.
Operating current 30 mA MAX.
Standby current 10 µA MAX.
Input/Output TTL compatible.
Three-state output NC A18 A17 A7 A6 A5 A4 A3 1 2 3 4 5 6 7 8 NC A19 42 A8 44 43 41 40 39 38 37 36 35 34 33 32 A9 A10 A11 A12 A13 A14 A15 A16 A2 9 A1 10 A0 11 CE# 12 VSS 13 OE# 14 D0 15 D8 16 D1 17 D9 18 D2 19 D10 20 D3 21 D11 22 PACKAG.
