MD5764802 - 18Mb (2M x 9) & 64Mb (8M x 8) Concurrent RDRAM

Product Overview

OKI electronic componets

Part number	MD5764802
Manufacturer	OKI electronic componets
File Size	549.62 KB
Description	18Mb (2M x 9) & 64Mb (8M x 8) Concurrent RDRAM
Datasheet	MD5764802 Datasheet

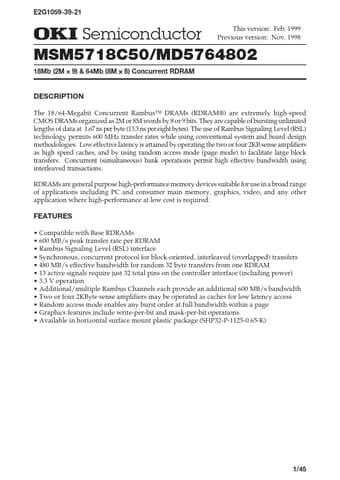

Additional preview pages of the MD5764802 datasheet.

The 18/64-Megabit Concurrent Rambus™ DRAMs (RDRAM®) are extremely high-speed CMOS DRAMs organized as 2M or 8M words by 8 or 9 bits.

Compatible with Base RDRAMs.
600 MB/s peak transfer rate per RDRAM.
Rambus Signaling Level (RSL) interface.
Synchronous, concurrent protocol for block-oriented, interleaved (overlapped) transfers.
480 MB/s effective bandwidth for random 32 byte transfers from one RDRAM.
13 active signals require just 32 total pins on the controller interface (including power).
3.3 V operation.
Additional/multiple Rambus Channels each provid.
