RP512Z - Ultra-low Quiescent Current 300mA Buck DC/DC Converter

RP512Z Description

RP512x Series 0.3 µA IQ Ultra-low Quiescent Current 300 mA Buck DC/DC Converter No.EA-400-190401 OVERVIEW RP512x is a DC/DC converter featuring 0.3.
3 2 1 Top View Bottom View 3 2 1 A BC C B A RP512Z (WLCSP-8-P1) Pin Configuration Top View 10 9 8 7 6 Bottom View 6 7 8 9 10 (1) 5 4 12.

RP512Z Applications

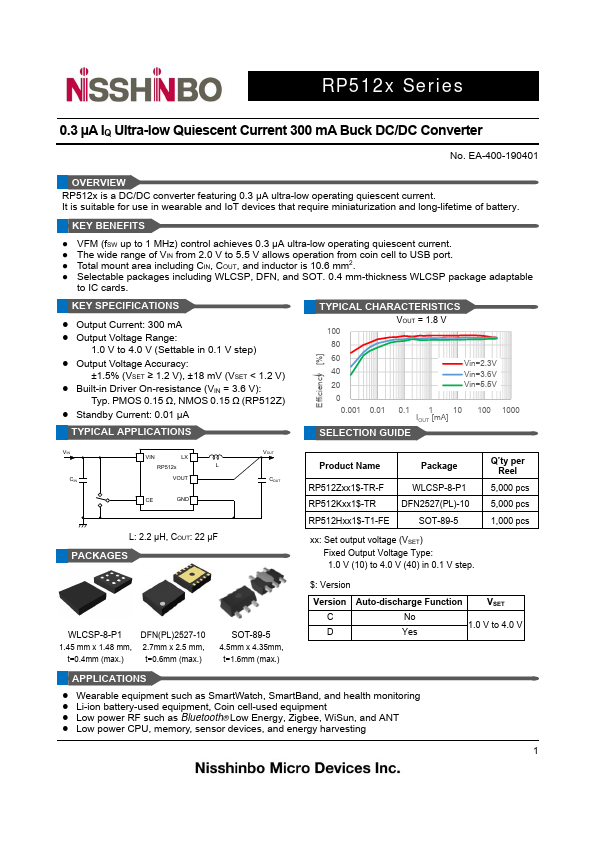

* Efficiency [%] TYPICAL CHARACTERISTICS VOUT = 1.8 V 100 80 60 Vin=2.3V 40 Vin=3.6V 20 Vin=5.5V 0 0.001 0.01 0.1 1 10 IOUT [mA] SELECTION GUIDE 100 1000 VIN CIN VIN LX RP512x L VOUT CE GND L: 2.2 µH, COUT: 22 µF PACKAGES VOUT COUT Product Name Package RP512Zxx1$-TR-F RP512Kxx1

📥 Download Datasheet

Preview of RP512Z PDF

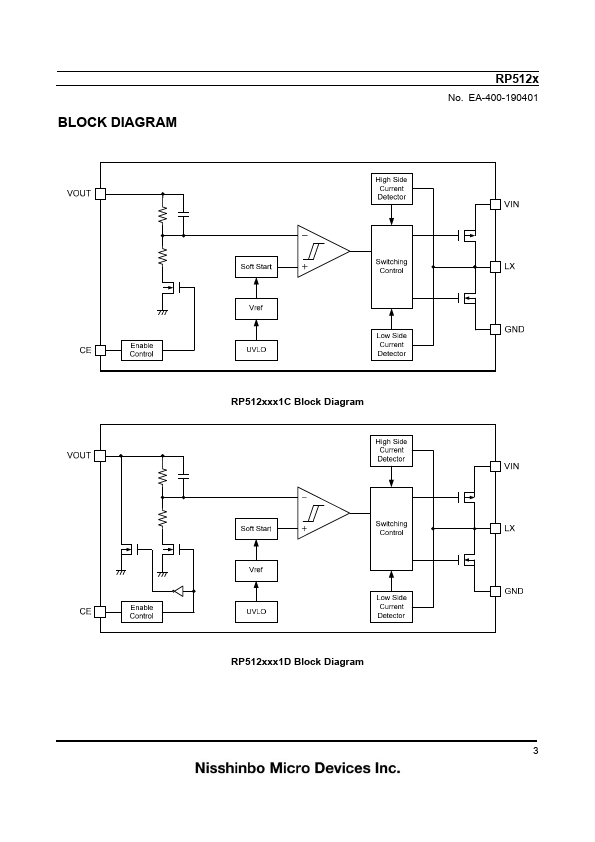

datasheet Preview Page 2 datasheet Preview Page 3
