RP509Z, RP509N - 0.5A/1A PWM/VFM Step-down DC/DC Converter

RP509Z Description

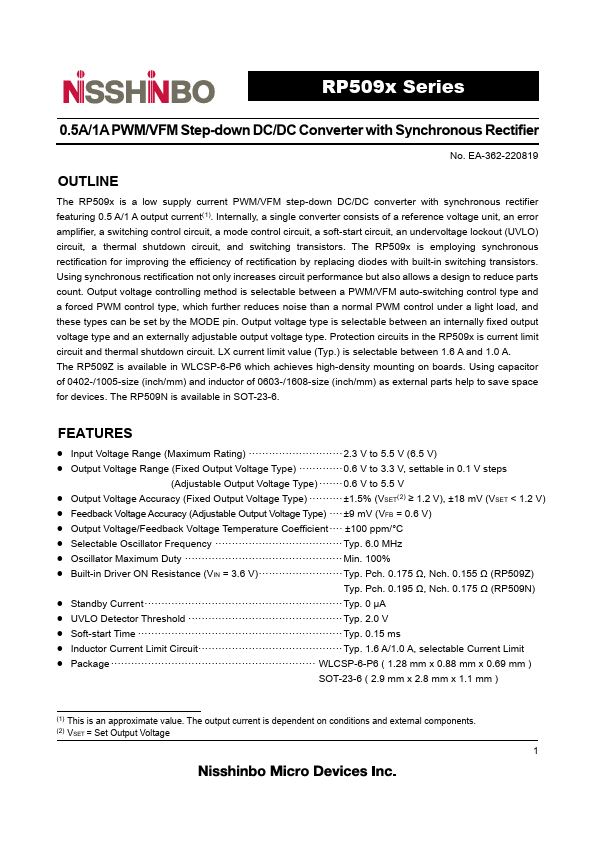

RP509x Series 0.5A/1A PWM/VFM Step-down DC/DC Converter with Synchronous Rectifier No.EA-362-220819 OUTLINE The RP509x is a low supply current PWM/VF.

RP509Z Features

* Input Voltage Range (Maximum Rating)
* 2.3 V to 5.5 V (6.5 V)
* Output Voltage Range (Fixed Output Voltage Type)

RP509Z Applications

* Portable Communication Equipment: Mobiles/Smartphones, Digital Cameras and Note-PCs
* Li-ion Battery-used Equipment SELECTION GUIDE The set output voltage, the output voltage type, the auto-discharge function(1), and the LX current limit for the ICs are user-selectable options. S

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RP509Z, RP509N. Please refer to the document for exact specifications by model.

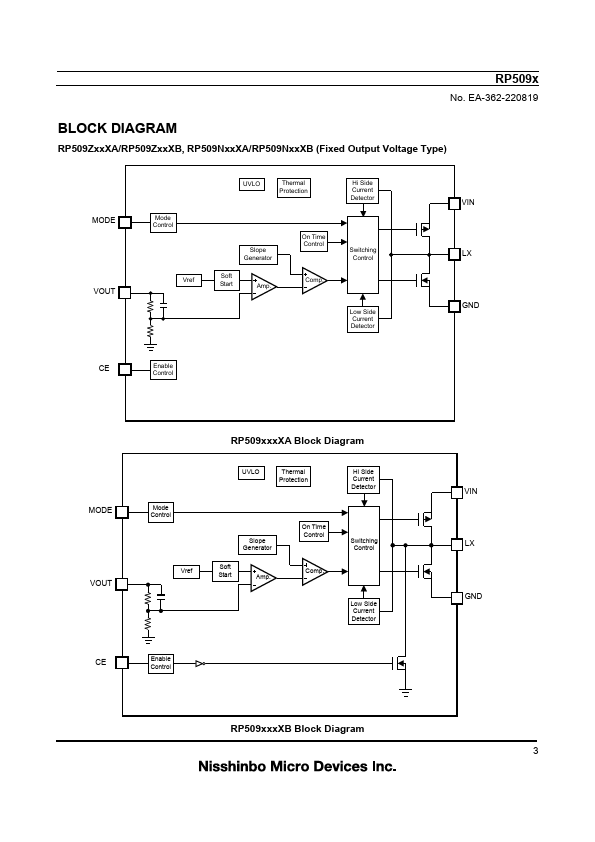

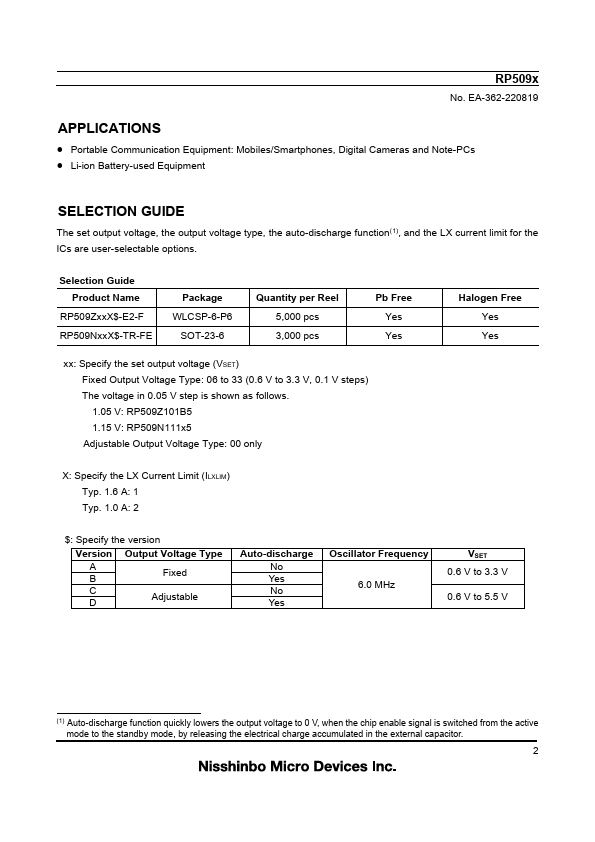

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RP509Z, RP509N
Manufacturer
Nisshinbo
File Size
1.76 MB
Datasheet
RP509N-Nisshinbo.pdf
Description
0.5A/1A PWM/VFM Step-down DC/DC Converter
Note
This datasheet PDF includes multiple part numbers: RP509Z, RP509N.
Please refer to the document for exact specifications by model.
