RP132H-Y, RP132K-Y - Low on Resistance / Low Voltage 1A LDO

Nisshinbo

📥 Download Datasheet

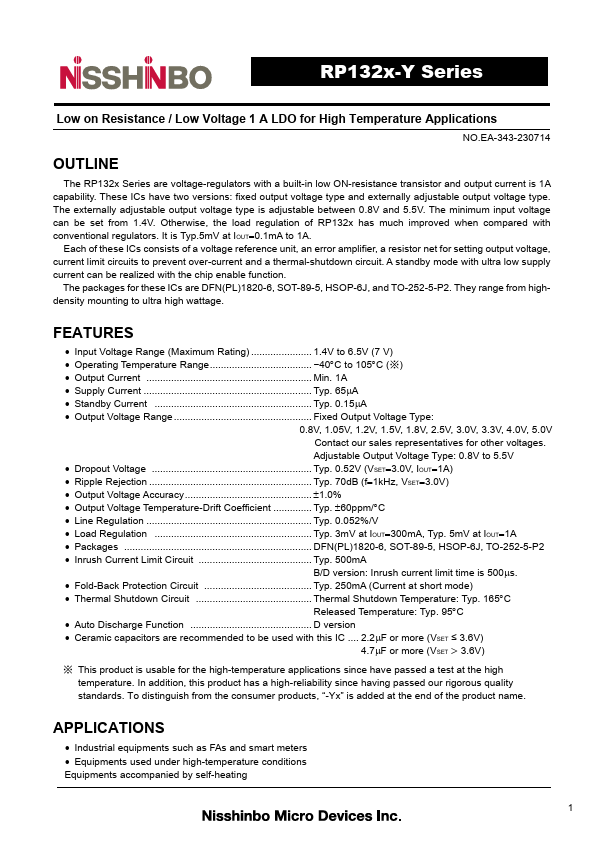

RP132H-Y Datasheet Preview — This datasheet PDF includes multiple part numbers: RP132H-Y, RP132K-Y. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

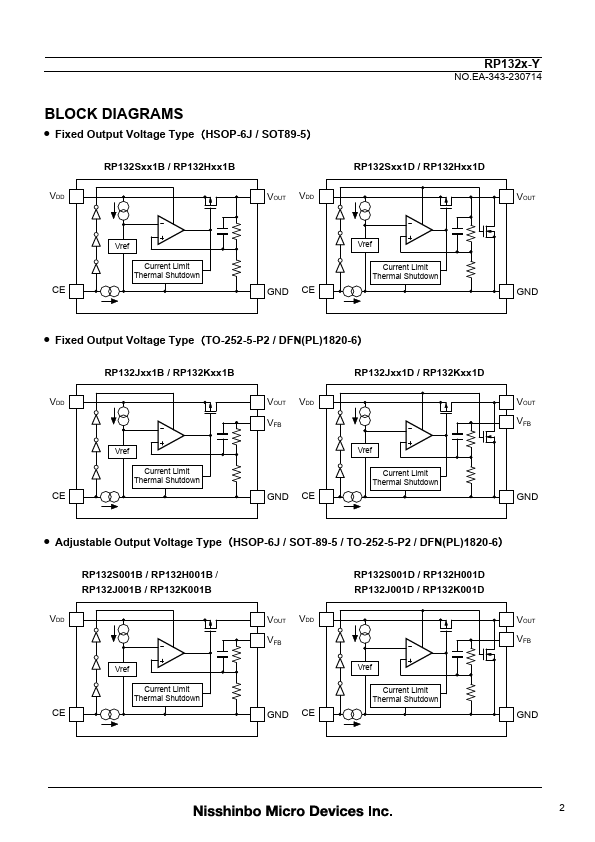

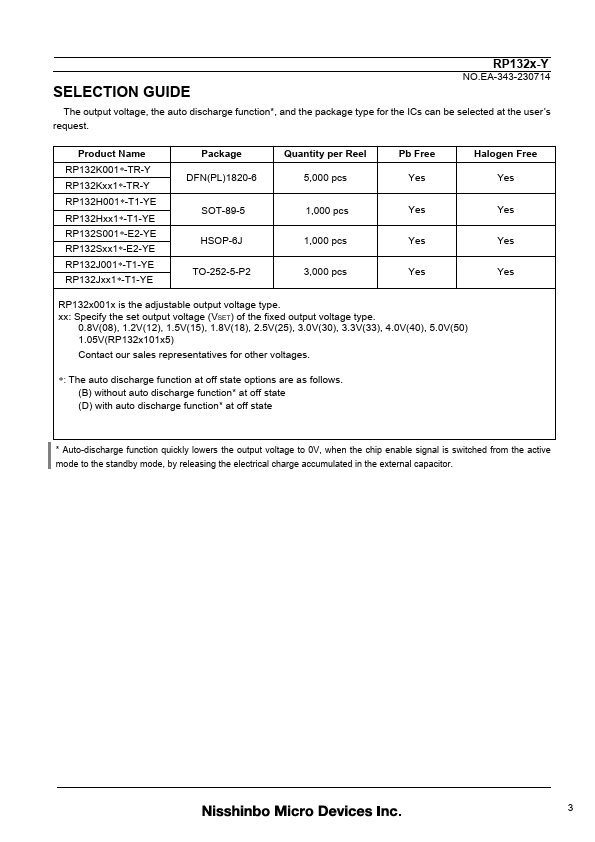

datasheet Preview Page 3

Datasheet Details

Part number: RP132H-Y, RP132K-Y
Manufacturer: Nisshinbo
File Size: 1.32 MB
Datasheet: RP132K-Y-Nisshinbo.pdf
Description: Low on Resistance / Low Voltage 1A LDO
Note: This datasheet PDF includes multiple part numbers: RP132H-Y, RP132K-Y.
Please refer to the document for exact specifications by model.

RP132H-Y Product details

Features

Input Voltage Range (Maximum Rating) 1.4V to 6.5V (7 V).
Operating Temperature Range.
40°C to 105°C (※).
Output Current Min. 1A.
Supply Current Typ. 65µA.
Standby Current Typ. 0.15µA.
Output Voltage Range Fixed Output Voltage Type: 0.8V, 1.05V, 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.3V, 4.0V, 5.0V Contact our sales representatives for other voltages. Adjustable Output Voltage Type: 0.8V to 5.5V.
Dropout Voltage Typ. 0.52V (VS.
