Description
Top View
Bottom View
4
3
3
4
(1)
4
3
(mark side)
RP130x
No.EA-173-230725
5
4
(mark side)
1
2
2
11
1
2
DFN(PL)1010-4 Pin Configuration SC-82AB Pin Configuration
123 SOT-23-5 Pin Configuration
DFN(PL)1010-4 Pin Description
Pin No
Symbol
1
VOUT
2
GND
3
CE / CE
4
VDD
SC-82AB Pin Description
Pin No
Symbol
1
CE / CE
2
GND
3
VOUT
4
VDD
SOT-23-5 Pin Description
Pin No
Symbol
1
VDD
2
GND
3
CE / CE
4
NC
5
VOUT
Output Pin Ground Pin
Pin Descripti

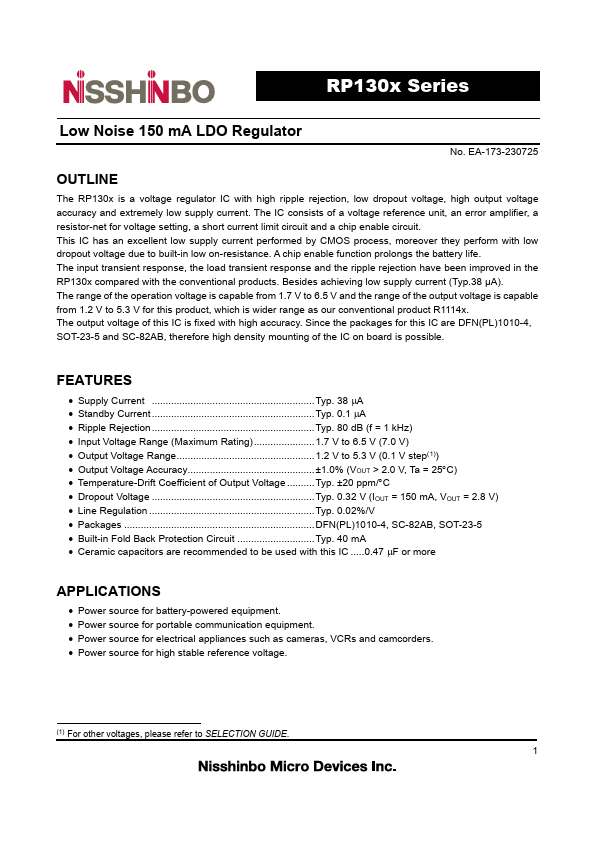

Features
- Supply Current Typ. 38 µA.
- Standby Current Typ. 0.1 µA.
- Ripple Rejection Typ. 80 dB (f = 1 kHz).
- Input Voltage Range (Maximum Rating) 1.7 V to 6.5 V (7.0 V).
- Output Voltage Range 1.2 V to 5.3 V (0.1 V step(1)).
- Output Voltage Accuracy ±1.0% (VOUT > 2.0 V, Ta = 25°C).
- Temperature-Drift Coefficient of Output Voltage Typ. ±20 ppm/°C.
- Dropout Voltage Typ. 0.32 V (IOUT = 150 mA, VOUT = 2.8 V).
- Line Regulation Typ.
