RP105Q, RP105K Low Voltage 400mA LDO Regulator

RP105Q Description

*RP105Q (SC-88A) is the discontinued product as of April, 2018.RP105x Series Low Voltage 400 mA LDO Regulator No.EA-179-221027 OUTLINE The RP105.

RP105Q Features

* Supply Current Typ. 28 A
* Standby Current Typ. 0.1 A
* Ripple Rejection Typ. 80 dB (f = 1 kHz, VIN Ripple) ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ . Typ. 50 dB (f = 1 kHz, VBIAS Ripple)
* Output Voltage Range 0.6 V to 1.5 V (0.1 V step) For

RP105Q Applications

* Power source for battery-powered equipment.
* Power source for electrical appliances such as cameras, VCRs and camcorders.
* Power source for portable communication equipment. 1
* RP105Q (SC-88A) is the discontinued product as of April, 2018. No. EA-179-221027 SELECTION GUIDE The

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RP105Q, RP105K. Please refer to the document for exact specifications by model.

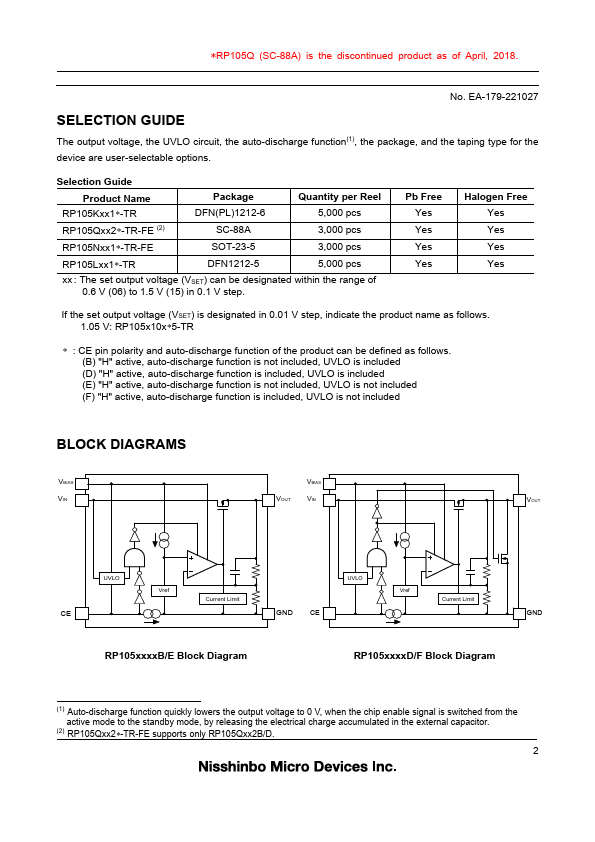

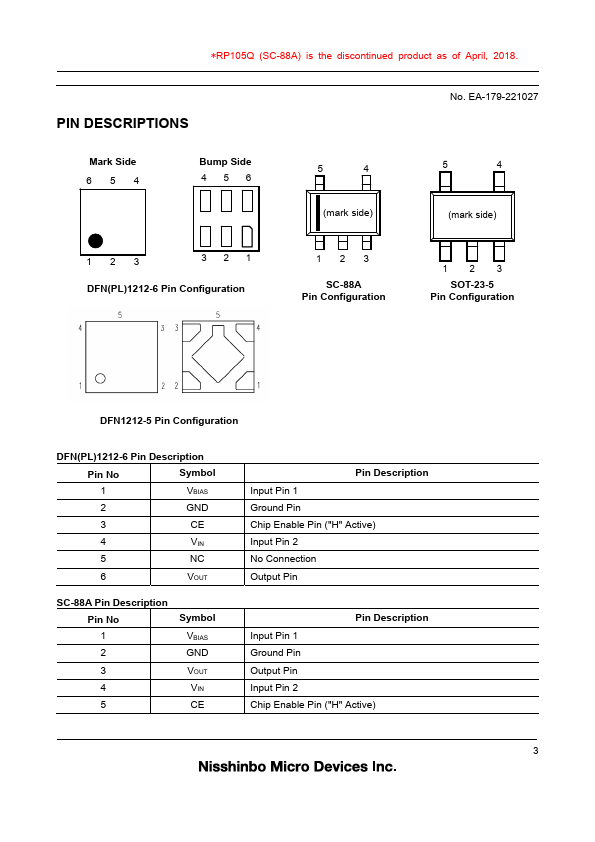

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RP105Q, RP105K
Manufacturer
Nisshinbo
File Size
1.80 MB
Datasheet
RP105K-Nisshinbo.pdf
Description
Low Voltage 400mA LDO Regulator
Note
This datasheet PDF includes multiple part numbers: RP105Q, RP105K.
Please refer to the document for exact specifications by model.
