RP105N, RP105K Low Voltage 400mA LDO Regulator

Nisshinbo

Description

*RP105Q (SC-88A) is the discontinued product as of April, 2018.RP105x Series Low Voltage 400 mA LDO Regulator No.EA-179-221027 OUTLINE The RP105.

📥 Download Datasheet

RP105N Datasheet Preview — This datasheet PDF includes multiple part numbers: RP105N, RP105K. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: RP105N, RP105K
Manufacturer: Nisshinbo
File Size: 1.80 MB
Datasheet: RP105K-Nisshinbo.pdf
Description: Low Voltage 400mA LDO Regulator
Note: This datasheet PDF includes multiple part numbers: RP105N, RP105K.
Please refer to the document for exact specifications by model.

Features

* Supply Current Typ. 28 A
* Standby Current Typ. 0.1 A
* Ripple Rejection Typ. 80 dB (f = 1 kHz, VIN Ripple) ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ . Typ. 50 dB (f = 1 kHz, VBIAS Ripple)
* Output Voltage Range 0.6 V to 1.5 V (0.1 V step) For

Applications

* Power source for battery-powered equipment.
* Power source for electrical appliances such as cameras, VCRs and camcorders.
* Power source for portable communication equipment. 1

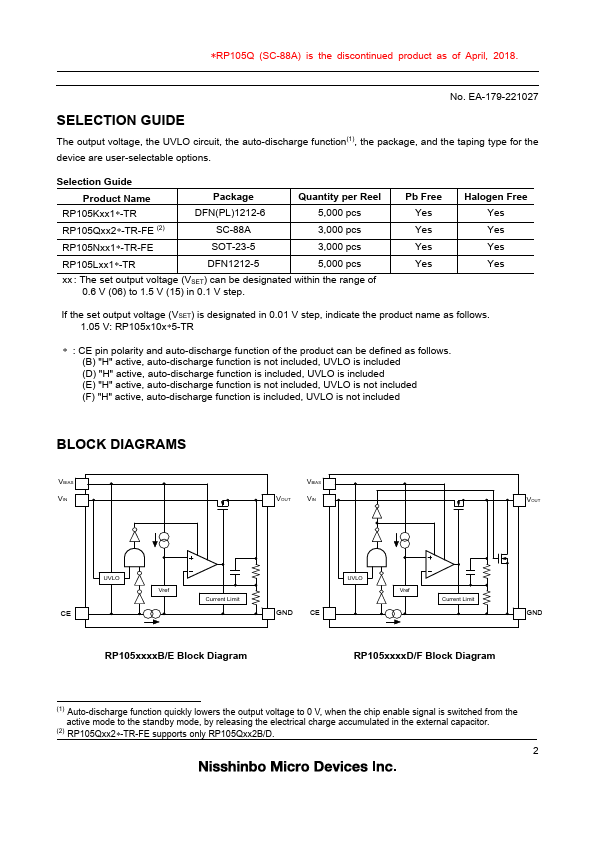

* RP105Q (SC-88A) is the discontinued product as of April, 2018. No. EA-179-221027 SELECTION GUIDE The
