R8160N - 200mA 36V Input Ultra Low Supply Current VR

Nisshinbo

The R8160N by Nisshinbo is a 200mA 36V Input Ultra Low Supply Current VR. Below is the official datasheet preview.

📥 Download Datasheet

R8160N 200mA 36V Input Ultra Low Supply Current VR by Nisshinbo - Datasheet Preview — Official preview page of the **R8160N** 200mA 36V Input Ultra Low Supply Current VR datasheet (Nisshinbo).

Datasheet Details

Part number	R8160N
Manufacturer	Nisshinbo
File Size	1.26 MB
Description	200mA 36V Input Ultra Low Supply Current VR
Datasheet	R8160N-Nisshinbo.pdf
Additional preview pages of the R8160N datasheet.

R8160N Product details

Description

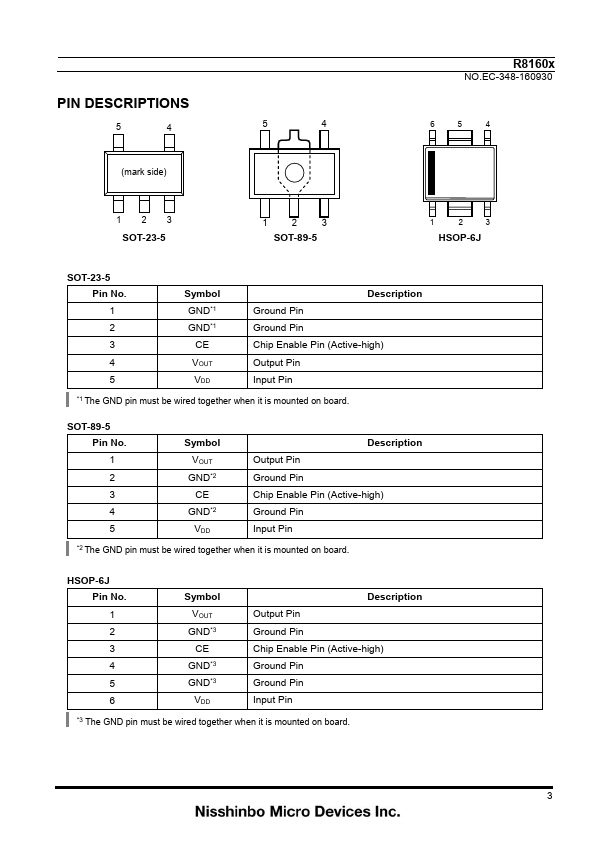

5 4 (mark side) 5 4 R8160x NO.EC-348-160930 6 5 4 123 SOT-23-5 1 2 3 SOT-89-5 1 2 3 HSOP-6J SOT-23-5 Pin No.1 2 3 4 5 Symbol GND 1 GND 1 CE VOUT VDD Description Ground Pin Ground Pin Chip Enable Pin (Active-high) Output Pin Input Pin 1 The GND pin must be wired together when it is mounted on board. 2 CE GND 2 VDD Description Output Pin Ground Pin Chip Enable Pin (Active-high) Ground Pin Input Pin 2 T

Features

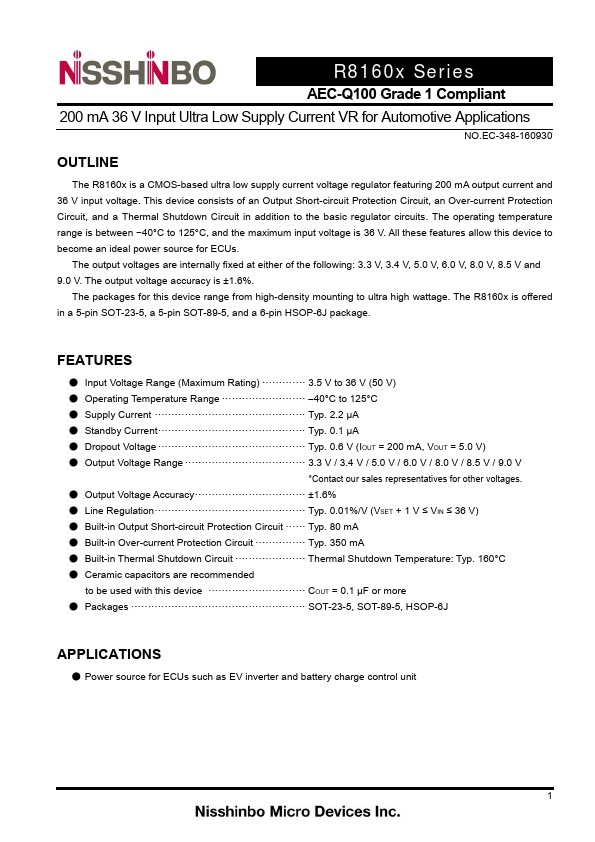

allow this device to become an ideal power source for ECUs. The output voltages are internally fixed at either of the following: 3.3 V, 3.4 V, 5.0 V, 6.0 V, 8.0 V, 8.5 V and 9.0 V. The output voltage accuracy is ±1.6%. The packages for this device range from high-density mounting to ultra high wattage. The R8160x is offered in a 5-pin SOT-23-5, a 5-pin SOT-89-5, and a 6-pin HSOP-6J package.
