Datasheet Details
| Part number | R1526S |
|---|---|
| Manufacturer | Nisshinbo |
| File Size | 1.37 MB |
| Description | 300mA 42V Voltage Regulator |
| Datasheet |
 R1526S-Nisshinbo.pdf
|
| Part number | R1526S |
|---|---|
| Manufacturer | Nisshinbo |
| File Size | 1.37 MB |
| Description | 300mA 42V Voltage Regulator |
| Datasheet |
R1526S-Nisshinbo.pdf
|

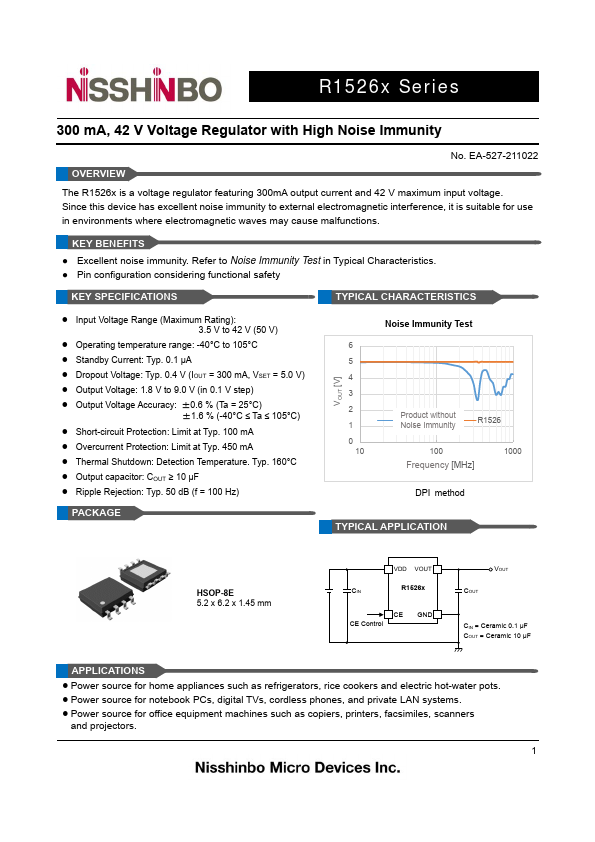

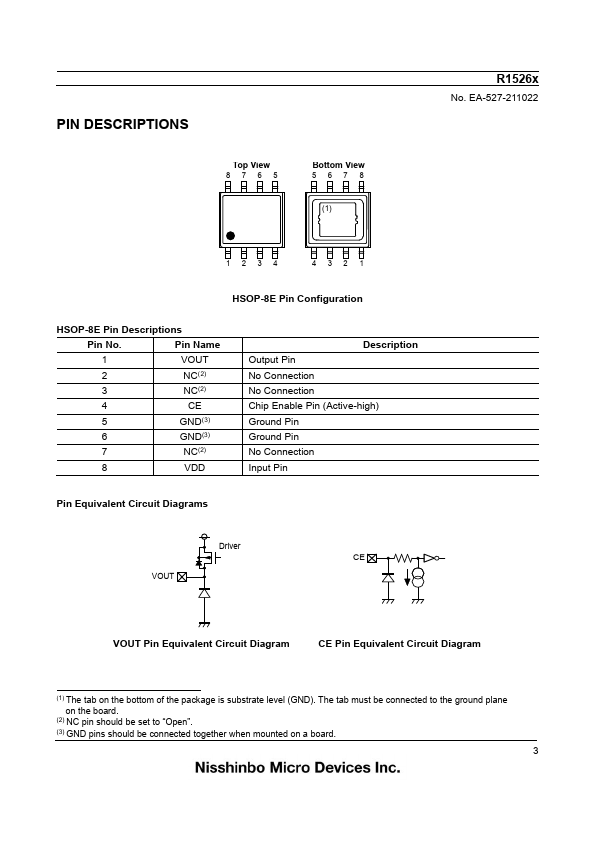

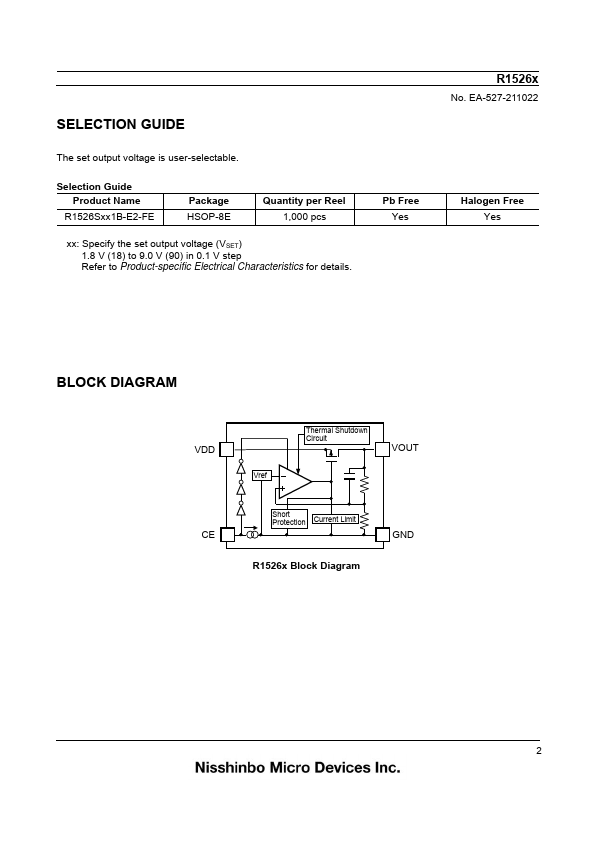

Top View 8765 Bottom View 5678 1 (1) R1526x No.EA-527-211022 1234 4321 HSOP-8E Pin Configuration HSOP-8E Pin Descriptions Pin No.Pin Name 1 VOUT 2 NC( 2) 3 NC(2) 4 CE 5 GND(3) 6 GND(3) 7 NC(2) 8 VDD Description Output Pin No Connection No Connection Chip Enable Pin (Active-high) Ground Pin Ground Pin No Connection Input Pin Pin Equivalent Circuit Diagrams Driver CE VOUT VOUT Pin Equivalent Circuit Diagram CE Pin Equivalent Circuit Diagram (1) The tab on the bot
