| Part number | R1516S, R1516H |
|---|---|
| Manufacturer | Nisshinbo |
| File Size | 396.32 KB |

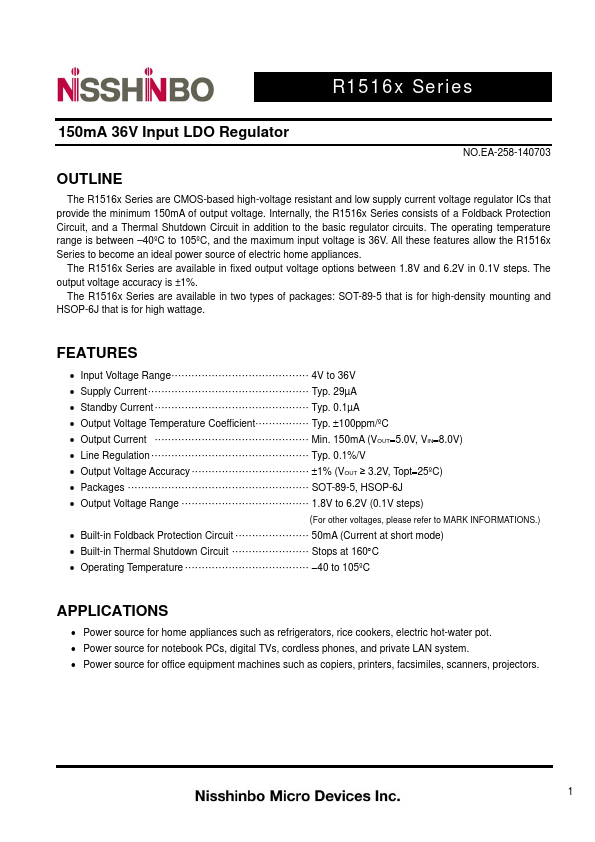

| Description | 150mA 36V Input LDO Regulator |
| Datasheet |
 R1516H-Nisshinbo.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: R1516S, R1516H. Please refer to the document for exact specifications by model. |

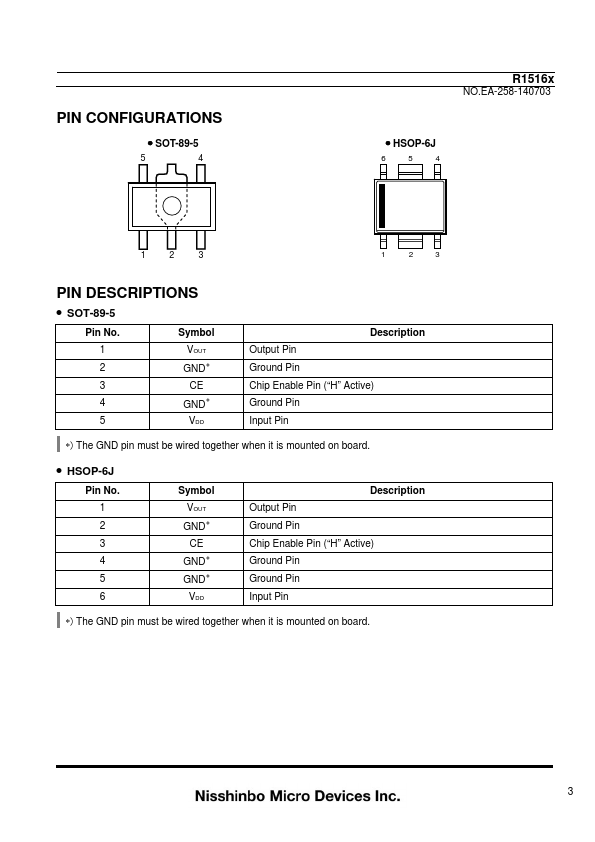

SOT-89-5 Pin No.Symbol 1 VOUT 2 GND∗ 3 CE 4 GND∗ 5 VDD Description Output Pin Ground Pin Chip Enable Pin (“H” Active) Ground Pin Input Pin ∗) The GND pin must be wired together when it is mounted on board. HSOP-6J Pin No.1 2 3 4 5 6 Symbol VOUT GND∗ CE GND∗ GND∗ VDD Description Output Pin Ground Pin Chip Enable Pin (“H” Active) Ground Pin Ground Pin Input Pin ∗) The GND pin must be wired together when it is mounted on board.3 R1516x NO.EA-258-140703 A
