NJM8830 Dual Audio Operational Amplifier

NJM8830 Description

Datasheet NJM8830 Ultralow Distortion, Ultralow Noise, Rail-to-Rail Output Dual Audio Operational Amplifier .
The NJM8830 is a ultralow distortion ultralow noise Rail-to-Rail output dual audio operational amplifier.

NJM8830 Features

* (V+/ V
* = ±5V, Typical value, Ta = 25°C)
* Ultralow Distortion 0.000012% typ. at f=1kHz
* Ultralow Noise 2.5nV/√Hz typ. at f=1kHz
* Wide Gain Bandwidth Product 90MHz typ.
* High Slew Rate 30V/µs typ
* High Output Current 100mA typ.
* Operating Voltage ±2.

NJM8830 Applications

* Portable Audio
* Home Audio
* Professional Audio

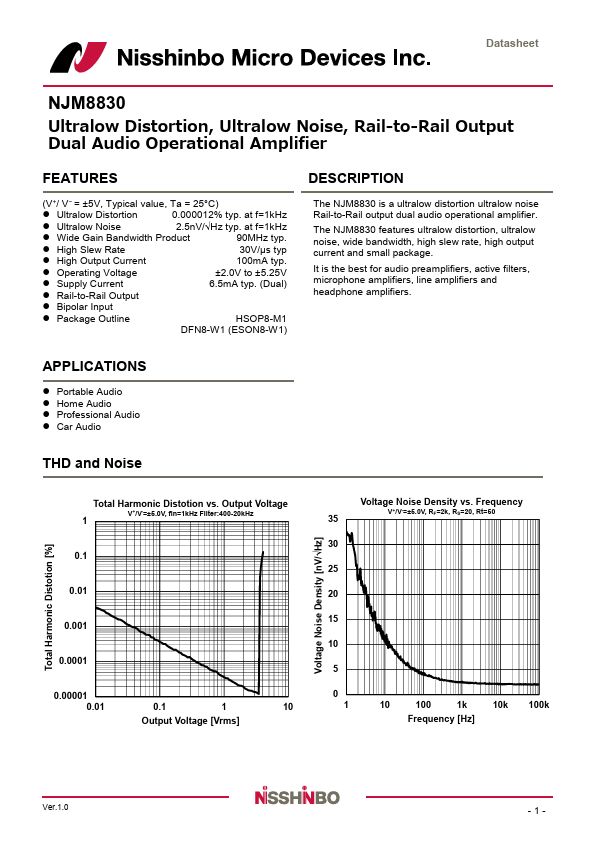

* Car Audio THD and Noise Total Harmonic Distotion [%] Voltage Noise Density [nV/√Hz] Total Harmonic Distotion vs. Output Voltage V+/V-=±5.0V, fin=1kHz Filter:400-20kHz 1 0.1 0.01 0.001 0.0001 0.00001 0.01 0.1 1 10 Outpu

📥 Download Datasheet

Preview of NJM8830 PDF

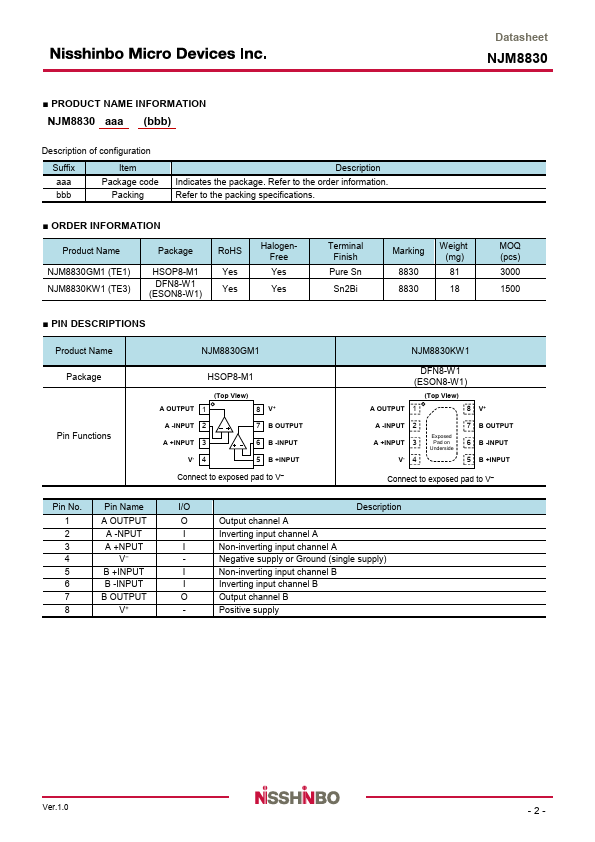

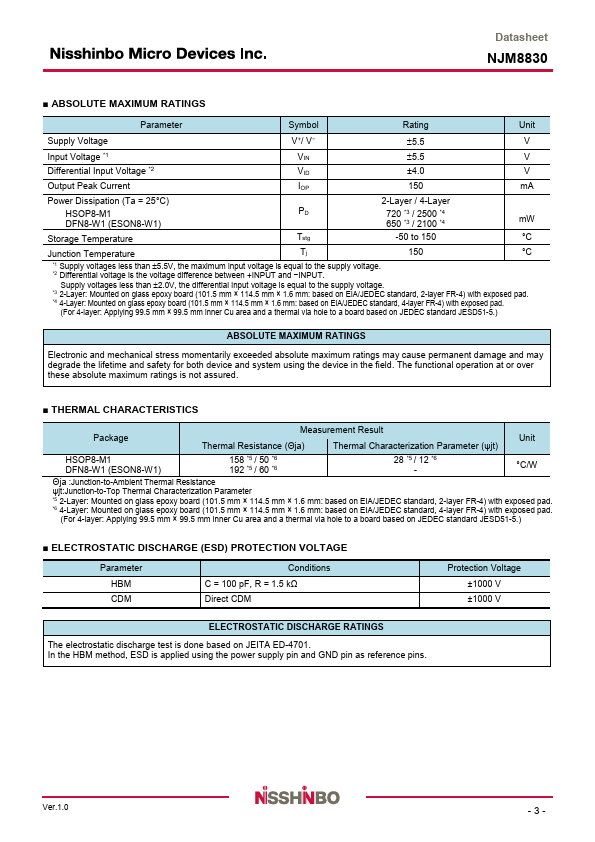

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NJM8830
Manufacturer
Nisshinbo
File Size
915.74 KB
Datasheet
NJM8830-Nisshinbo.pdf
Description
Dual Audio Operational Amplifier
