NJM2904BR-Z2 High EMC performance Operational Amplifier

NJM2904BR-Z2 Description

Datasheet Automotive NJM2904BR-Z2 High EMC performance, Single Supply, Operational Amplifier .
The NJM2904BR-Z2 is a versatile operational amplifier for automotive use.

NJM2904BR-Z2 Features

* AEC-Q100 grade 1 in progress
* Internal EMI filter
* Operating voltage range
* Input offset voltage
* Consumption current
* Slew rate
* Unity-gain stability
* Bipolar process

NJM2904BR-Z2 Applications

* APPLICATIONS
* General use for automotive NJM2904BR-Z2 MSOP8 (VSP8) 2.9 × 4.0 × 1.1 (mm)
* TYPICAL CHARACTERISTICS of EMC performance (Immunity) The NJM2904B achieved high immunity with IEC 62132-4 (DPI method) and ED-5008 benchmark with not only input terminals but also voltage supply t

📥 Download Datasheet

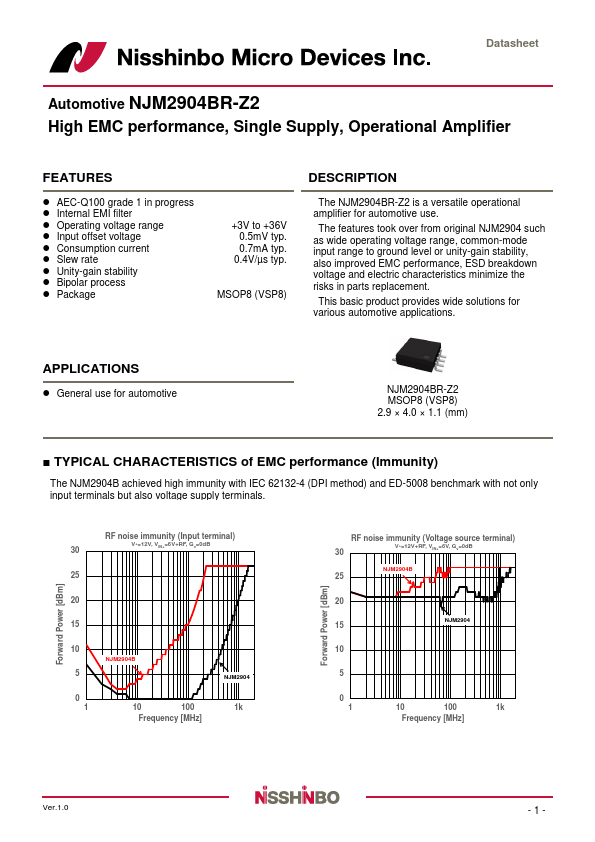

Preview of NJM2904BR-Z2 PDF

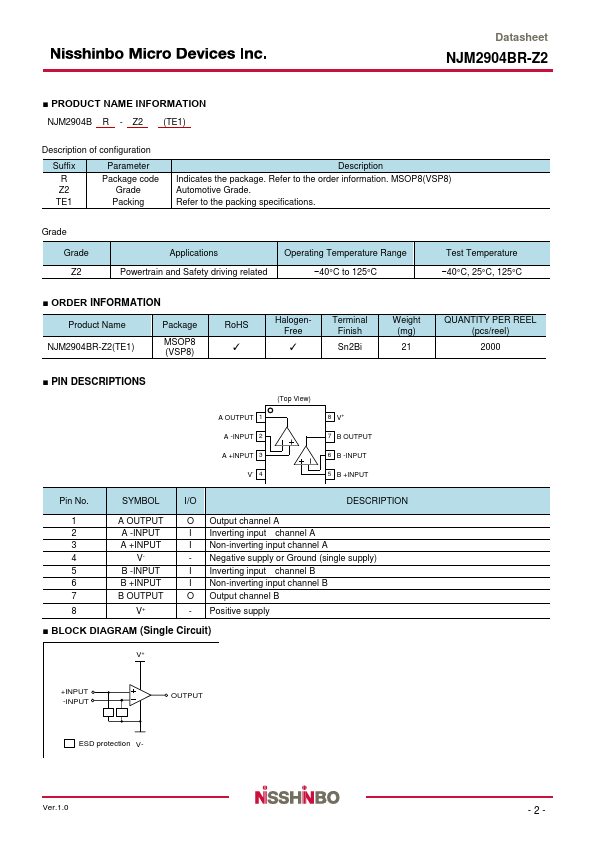

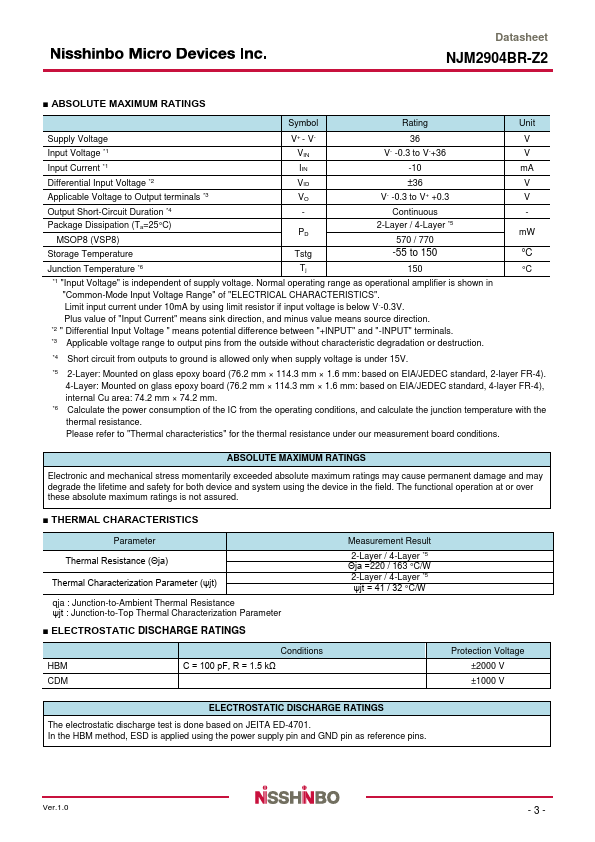

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NJM2904BR-Z2
Manufacturer
Nisshinbo
File Size
1.33 MB
Datasheet
NJM2904BR-Z2-Nisshinbo.pdf
Description
High EMC performance Operational Amplifier
