NJM78L03A, NJM78L00 3-TERMINAL POSITIVE VOLTAGE REGULATOR

NJM78L03A Description

NJM78L00 3-TERMINAL POSITIVE VOLTAGE REGULATOR s GENERAL DESCLIPTION NJM78L00 is 3-terminal positive voltage regulator.NJM78L00 series is mounted i.

NJM78L03A Features

* qInternal Short Circuit Current Limit qInternal Thermal Overload Protection qExcellent Ripple Rejection qGuaranteed 100mA Output Current qBipolar Technology qPackage Outline T0-92,SOT-89,EMP8 s PIN CONFIGURATION PIN FUNCTION 1.OUT 2.GND 3.IN 123 123 NJM78L00A NJM78L00UA s PACKAGE OUTLIN

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NJM78L03A, NJM78L00. Please refer to the document for exact specifications by model.

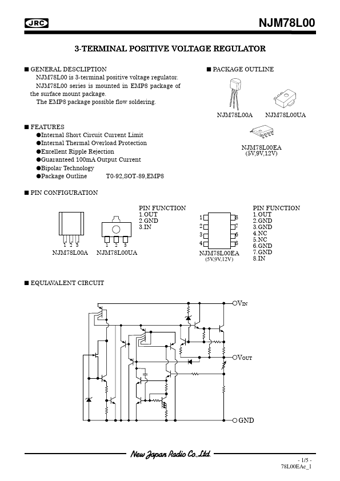

datasheet Preview Page 2 datasheet Preview Page 3
