NJM78L03UA, NJM78L00UA 3-TERMINAL POSITIVE VOLTAGE REGULATOR

NJM78L03UA Description

NJM78L00 3-TERMINAL POSITIVE VOLTAGE REGULATOR * GENERAL .
The NJM78L00 series of 3-Terminal Positive Voltage Regulators are constructed using the New JRC Planar epitaxial process.

NJM78L03UA Features

* Internal Short Circuit Current Limit
* Internal Thermal Overload Protection
* Excellent Ripple Rejection
* Guaranteed 100mA Output Current
* Package Outline SOT-89, SOP8 JEDEC 150mil
* Bipolar Technology
* PIN CONFIGURATION 2 PIN CONFIGURATION 12 3 1. OUT 2.

NJM78L03UA Applications

* including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The NJM78L00 series used as a Zener diode/resistor combination replacement

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NJM78L03UA, NJM78L00UA. Please refer to the document for exact specifications by model.

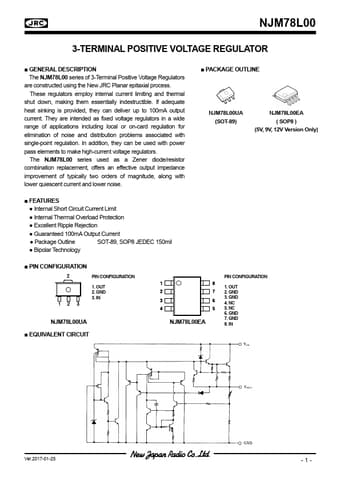

datasheet Preview Page 2 datasheet Preview Page 3
