MF10 - Universal Monolithic Dual Switched Capacitor Filter

National

The MF10 by National is a Universal Monolithic Dual Switched Capacitor Filter. Below is the official datasheet preview.

📥 Download Datasheet

MF10 Universal Monolithic Dual Switched Capacitor Filter by National - Datasheet Preview — Official preview page of the **MF10** Universal Monolithic Dual Switched Capacitor Filter datasheet (National).

Datasheet Details

Part number	MF10
Manufacturer	National
File Size	696.66 KB
Description	Universal Monolithic Dual Switched Capacitor Filter
Datasheet	MF10_NationalSemiconductor.pdf

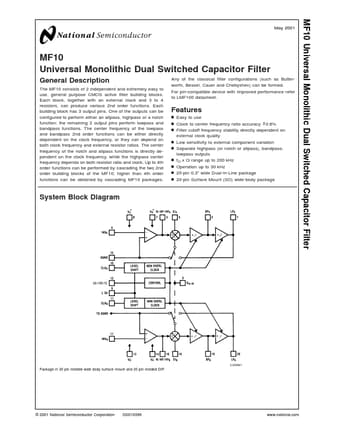

Additional preview pages of the MF10 datasheet.

MF10 Product details

Description

The MF10 consists of 2 independent and extremely easy to use general purpose CMOS active filter building blocks Each block together with an external clock and 3 to 4 resistors can produce various 2nd order functions Each building block has 3 output pins One of the outputs can be configured to perform either an allpass highpass or a notch function the remaining 2 output pins perform lowpass and bandpass functions The center frequency of the lowpass and bandpass 2nd order functions can be either d

Features

Y Y Y Y Y Y Y Y Y Easy to use Clock to center frequency ratio accuracy g 0 6% Filter cutoff frequency stability directly dependent on external clock quality Low sensitivity to external component variation Separate highpass (or notch or allpass) bandpass lowpass outputs fO c Q range up to 200 kHz Operation up to 30 kHz 20-pin 0 3 wide Dual-In-Line package 20-pin Surface Mount (SO) wide-body package System Block Diagram Connection Diagram Surface Mount and Dual-In-Line Package TL H 10399.
