MM74HC148 - 8-3 Line Priority Encoder

National Semiconductor

The MM74HC148 by National Semiconductor is a 8-3 Line Priority Encoder. Below is the official datasheet preview.

📥 Download Datasheet

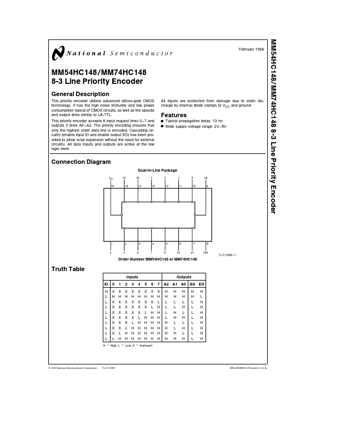

MM74HC148 8-3 Line Priority Encoder by National Semiconductor - Datasheet Preview — Official preview page of the **MM74HC148** 8-3 Line Priority Encoder datasheet (National Semiconductor).

Datasheet Details

Part number	MM74HC148
Manufacturer	National Semiconductor
File Size	145.52 KB
Description	8-3 Line Priority Encoder
Datasheet	MM74HC148_NationalSemiconductor.pdf
Additional preview pages of the MM74HC148 datasheet.

MM74HC148 Product details

Description

This priority encoder utilizes advanced silicon-gate CMOS technology It has the high noise immunity and low power consumption typical of CMOS circuits as well as the speeds and output drive similar to LB-TTL This priority encoder accepts 8 input request lines 0 7 and outputs 3 lines A0 A2 The priority encoding ensures that only the highest order data line is encoded Cascading circuitry (enable input EI and enable output EO) has been provided to allow octal expansion without the

Features

Y Y Typical propagation delay 13 ns Wide supply voltage range 2V.
6V Connection Diagram Dual-In-Line Package TL F 9390.
1 Order Number MM54HC148 or MM74HC148 Truth Table Inputs EI H L L L L L L L L L 0 X H X X X X X X X L 1 X H X X X X X X L H 2 X H X X X X X L H H 3 X H X X X X L H H H 4 X H X X X L H H H H 5 X H X X L H H H H H 6 X H X L H H H H H H 7 X H L H H H H H H H Outputs A2 A1 A0 GS EO H H L L L L H H H H H H L L H H L L H H H H L H L H L H L H H H L L L L L L L.
