LMX2434, LMX - Dual High Frequency Synthesizer

National Semiconductor

Datasheet Details

Part number	LMX2434, LMX
Manufacturer	National Semiconductor
File Size	943.14 KB
Description	Dual High Frequency Synthesizer
Datasheet	LMX-2430.pdf
Note	This datasheet PDF includes multiple part numbers: LMX2434, LMX. Please refer to the document for exact specifications by model.

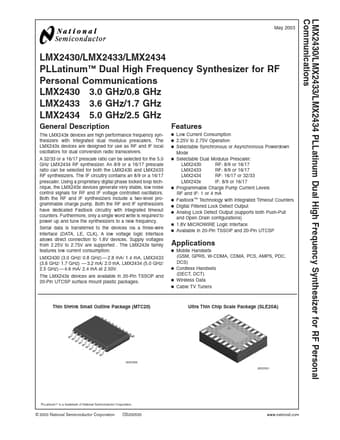

The LMX243x devices are high performance frequency synthesizers with integrated dual modulus prescalers.

low current consumption: LMX2430 (3.0 GHz/ 0.8 GHz).
2.8 mA/ 1.4 mA, LMX2433 (3.6 GHz/ 1.7 GHz).
3.2 mA/ 2.0 mA, LMX2434 (5.0 GHz/ 2.5 GHz).
4.6 mA/ 2.4 mA at 2.50V. The LMX243x devices are available in 20-Pin TSSOP and 20-Pin UTCSP surface mount plastic packages. Features n Low Current Consumption n 2.25V to 2.75V Operation n Selectable Synchronous or Asynchronous Powerdown Mode n Selectable Dual Modulus Prescaler: LMX2430 RF: 8/9 or 16/17 LMX2433 RF: 8/9 or 16/17 LM.
