LMX2411 - Baseband Processor

National Semiconductor

📥 Download Datasheet

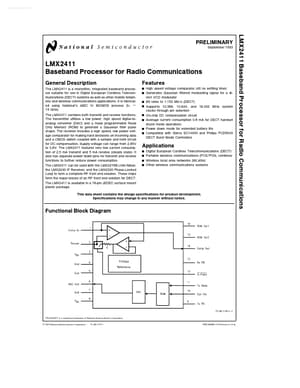

LMX2411 Datasheet Preview — Preview of LMX2411 PDF

Datasheet Details

Part number	LMX2411
Manufacturer	National Semiconductor
File Size	178.68 KB
Description	Baseband Processor
Datasheet	LMX2411_NationalSemiconductor.pdf

LMX2411 Product details

Description

The LMX2411 is a monolithic integrated baseband processor suitable for use in Digital European Cordless Telecommunications (DECT) systems as well as other mobile telephony and wireless communications applications It is fabricated using National’s ABiC IV BiCMOS process (fT e 15 GHz) The LMX2411 contains both transmit and receive functions The transmitter utilizes a low power high speed digital-toanalog converter (DAC) and a mask programmable Read Only Memory (ROM) to generate a Gaussian filter p

Features

very low current consumption of 2 5 mA transmit and 5 mA receive (steady state) It also has separate power down pins for transmit and receive functions to further reduce power consumption The LMX2411 can be used with the LMX2216B LNA Mixer the LMX2240 IF Receiver and the LMX2320 Phase-Locked Loop to form a complete RF front end solution These chips form the major blocks of an RF front end solution for DECT The LMX2411 is available in a 16-pin JEDEC surface mount plastic package Features Y Y Y.
