LMV1026 - (LMV1024 / LMV1026) PDM Output

National Semiconductor

The LMV1026 by National Semiconductor is a (LMV1024 / LMV1026) PDM Output. Below is the official datasheet preview.

Datasheet Details

Part number	LMV1026
Manufacturer	National Semiconductor
File Size	1.16 MB
Description	(LMV1024 / LMV1026) PDM Output
Datasheet	LMV1026_NationalSemiconductor.pdf

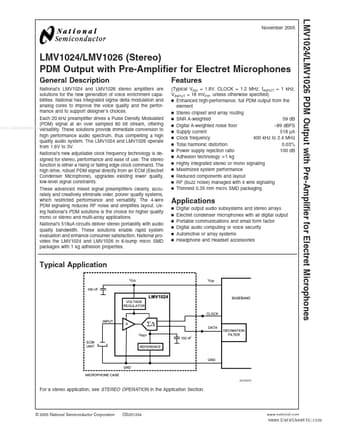

Additional preview pages of the LMV1026 datasheet.

National’s LMV1024 and LMV1026 stereo amplifiers are solutions for the new generation of voice enrichment capabilities.

(Typical VDD = 1.8V, CLOCK = 1.2 MHz, fINPUT = 1 kHz, VINPUT = 18 mVPP, unless otherwise specified) n Enhanced high-performance, full PDM output from the element n Stereo chipset and array routing n SNR A-weighted 59 dB n Digital A-weighted noise floor.
89 dBFS n Supply current 518 µA n Clock frequency 400 kHz to 2.4 MHz n Total harmonic distortion 0.03% n Power supply rejection ratio 100 dB n Adhesion technology > 1 kg n Highly integrated stereo or mono signaling n Maximized system perf.
