LMV102 - Fixed-Gain Amplifiers

Description

The LMV101/102/105/110 fixed-gain amplifier family integrates a rail-to-rail op amp, two internal gain-setting resistors and a V+/2 bias circuit into one ultra tiny package, SC70-5 or SOT23-5.

1, 2, 5, and

10 are available.

Features

  • (For 5V Supply, Typical Unless Otherwise Noted) n Fixed inverting gain available.
  • 1,.
  • 2,.
  • 5,.
  • 10 n DC gain accuracy @2.7V supply.
  • LMV101/102/105 2% (typ).
  • LMV110 6% (typ) n Space saving packages SC70-5 & SOT23-5 n Industrial temperature range.
  • 40˚C to +85˚C n Low supply current 130µA n Rail-to-Rail output swing n Guaranteed 2.7V and 5V performance.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LMV1024 PDM Output with Pre-Amplifier Texas Instruments
LMV1026 PDM Output with Pre-Amplifier Texas Instruments
LMV1012 LMV1012 Analog Series: Pre-Amplified IC for High Gain 2-Wire Microphones (Rev. H) ETCTI
LMV1015 LMV1015 Analog Series: Built-in Gain IC for High Sensitivity 2-Wire Microphone (Rev. B) ETCTI
LMV1031 LMV1031-20 Amp for Internal 3-Wire Analog Microphones External Preamp (Rev. B) ETCTI

Other Datasheets by National Semiconductor (Texas Instruments)

Part Number Description
LMV1022 PDM Output Pre-Amplifier
LMV1023 PDM Output Pre-Amplifier
LMV1024 (LMV1024 / LMV1026) PDM Output
LMV1026 (LMV1024 / LMV1026) PDM Output
LMV101 Fixed-Gain Amplifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

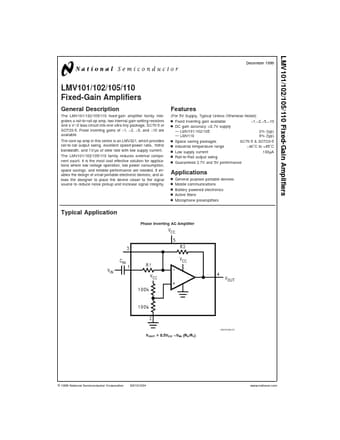

LMV101/102/105/110 Fixed-Gain Amplifiers December 1999 LMV101/102/105/110 Fixed-Gain Amplifiers General Description The LMV101/102/105/110 fixed-gain amplifier family integrates a rail-to-rail op amp, two internal gain-setting resistors and a V+/2 bias circuit into one ultra tiny package, SC70-5 or SOT23-5. Fixed inverting gains of −1, −2, −5, and −10 are available. The core op amp in this series is an LMV321, which provides rail-to-rail output swing, excellent speed-power ratio, 1MHz bandwidth, and 1V/µs of slew rate with low supply current. The LMV101/102/105/110 family reduces external component count. It is the most cost effective solution for applications where low voltage operation, low power consumption, space savings, and reliable performance are needed.
