LM3488 - High Efficiency Low-Side N-Channel Controller for Switching Regulators

National Semiconductor

The LM3488 by National Semiconductor is a High Efficiency Low-Side N-Channel Controller for Switching Regulators. Below is the official datasheet preview.

📥 Download Datasheet

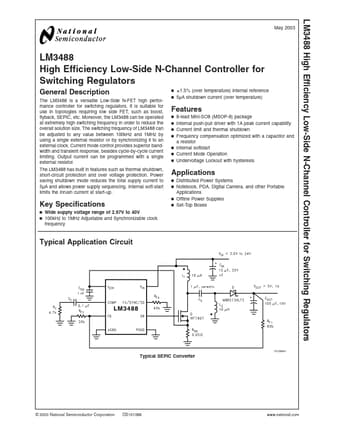

LM3488 High Efficiency Low-Side N-Channel Controller for Switching Regulators by National Semiconductor - Datasheet Preview — Official preview page of the **LM3488** High Efficiency Low-Side N-Channel Controller for Switching Regulators datasheet (National Semiconductor).

Datasheet Details

Part number	LM3488
Manufacturer	National Semiconductor
File Size	626.74 KB
Description	High Efficiency Low-Side N-Channel Controller for Switching Regulators
Datasheet	LM3488_NationalSemiconductor.pdf
Additional preview pages of the LM3488 datasheet.

LM3488 Product details

Description

The LM3488 is a versatile Low-Side N-FET high performance controller for switching regulators.

Features

such as thermal shutdown, short-circuit protection and over voltage protection. Power saving shutdown mode reduces the total supply current to 5µA and allows power supply sequencing. Internal soft-start limits the inrush current at start-up. n ± 1.5% (over temperature) internal reference n 5µA shutdown current (over temperature) Features 8-lead Mini-SO8 (MSOP-8) package Internal push-pull driver with 1A peak current capability Current limit and thermal shutdown Frequency compensation optimized.
