LM3480, LM3 - 100 mA/ SOT-23/ Quasi Low-Dropout Linear Voltage Regulator

National Semiconductor

The LM3480 by National Semiconductor is a 100 mA/ SOT-23/ Quasi Low-Dropout Linear Voltage Regulator. Below is the official datasheet preview.

📥 Download Datasheet

LM3480 100 mA/ SOT-23/ Quasi Low-Dropout Linear Voltage Regulator by National Semiconductor - Datasheet Preview — Official preview page of the **LM3480** 100 mA/ SOT-23/ Quasi Low-Dropout Linear Voltage Regulator datasheet (National Semiconductor).

Datasheet Details

Part number	LM3480, LM3
Manufacturer	National Semiconductor
File Size	277.21 KB
Description	100 mA/ SOT-23/ Quasi Low-Dropout Linear Voltage Regulator
Datasheet	LM3-480.pdf
Note	This datasheet PDF includes multiple part numbers: LM3480, LM3. Please refer to the document for exact specifications by model.

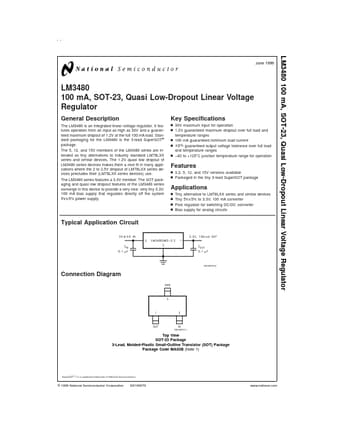

Additional preview pages of the LM3480 datasheet.

LM3480 Product details

Description

The LM3480 is an integrated linear voltage regulator.

Features

operation from an input as high as 30V and a guaranteed maximum dropout of 1.2V at the full 100 mA load. Standard packaging for the LM3480 is the 3-lead SuperSOT ® package. The 5, 12, and 15V members of the LM3480 series are intended as tiny alternatives to industry standard LM78LXX series and similar devices. The 1.2V quasi low dropout of LM3480 series devices makes them a nice fit in many.
