LM3477, LM3 - High Efficiency High-Side N-Channel Controller for Switching Regulator

National Semiconductor

The LM3477 by National Semiconductor is a High Efficiency High-Side N-Channel Controller for Switching Regulator. Below is the official datasheet preview.

📥 Download Datasheet

LM3477 High Efficiency High-Side N-Channel Controller for Switching Regulator by National Semiconductor - Datasheet Preview — Official preview page of the **LM3477** High Efficiency High-Side N-Channel Controller for Switching Regulator datasheet (National Semiconductor).

Datasheet Details

Part number	LM3477, LM3
Manufacturer	National Semiconductor
File Size	815.87 KB
Description	High Efficiency High-Side N-Channel Controller for Switching Regulator
Datasheet	LM3-477.pdf
Note	This datasheet PDF includes multiple part numbers: LM3477, LM3. Please refer to the document for exact specifications by model.

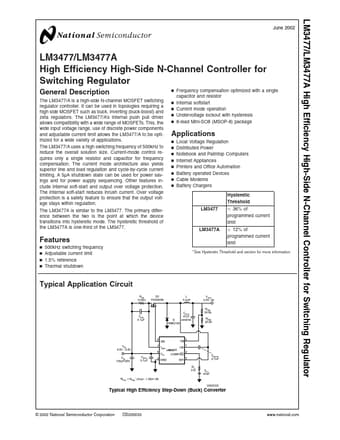

Additional preview pages of the LM3477 datasheet.

LM3477 Product details

Description

The LM3477/A is a high-side N-channel MOSFET switching regulator controller.

Features

include internal soft-start and output over voltage protection. The internal soft-start reduces inrush current. Over voltage protection is a safety feature to ensure that the output voltage stays within regulation. The LM3477A is similar to the LM3477. The primary difference between the two is the point at which the device transitions into hysteretic mode. The hysteretic threshold of the LM3477A is one-third of the LM3477. n Frequency compensation optimized with a single capacitor and resistor n.
