LM2724A - High Speed 3A Synchronous MOSFET Driver

National Semiconductor

📥 Download Datasheet

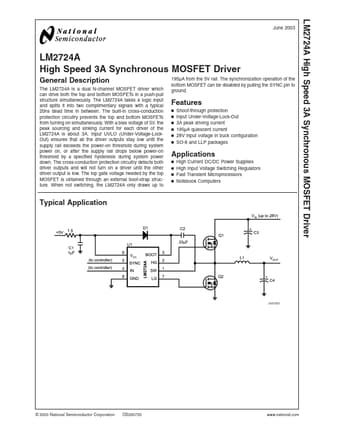

LM2724A Datasheet Preview — Preview of LM2724A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LM2724A
Manufacturer	National Semiconductor
File Size	135.65 KB
Description	High Speed 3A Synchronous MOSFET Driver
Datasheet	LM2724A_NationalSemiconductor.pdf

LM2724A Product details

Description

The LM2724A is a dual N-channel MOSFET driver which can drive both the top and bottom MOSFETs in a push-pull structure simultaneously.

Features

n n n n n n Shoot-through protection Input Under-Voltage-Lock-Out 3A peak driving current 195µA quiescent current 28V input voltage in buck configuration SO-8 and LLP packages.
