LM1893 - LM1893/LM2893 Carrier-Current Transceiver

National Semiconductor

The LM1893 by National Semiconductor is a LM1893/LM2893 Carrier-Current Transceiver. Below is the official datasheet preview.

📥 Download Datasheet

LM1893 LM1893/LM2893 Carrier-Current Transceiver by National Semiconductor - Datasheet Preview — Official preview page of the **LM1893** LM1893/LM2893 Carrier-Current Transceiver datasheet (National Semiconductor).

Datasheet Details

Part number	LM1893
Manufacturer	National Semiconductor
File Size	576.89 KB
Description	LM1893/LM2893 Carrier-Current Transceiver
Datasheet	LM1893_NationalSemiconductor.pdf

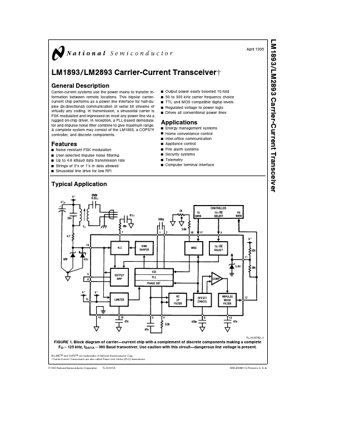

Additional preview pages of the LM1893 datasheet.

LM1893 Product details

Description

Carrier-current systems use the power mains to transfer information between remote locations This bipolar carriercurrent chip performs as a power line interface for half-duplex (bi-directional) communication of serial bit streams of virtually any coding In transmission a sinusoidal carrier is FSK modulated and impressed on most any power line via a rugged on-chip driver In reception a PLL-based demodulator and impulse noise filter combine to give maximum range A complete system may consist of th

Features

Y Y Y Y Y Y Y Y Y Y Noise resistant FSK modulation User-selected impulse noise filtering Up to 4 8 kBaud data transmission rate Strings of 0’s or 1’s in data allowed Sinusoidal line drive for low RFI Energy management systems Home convenience control Inter-office communication Appliance control Fire alarm systems Security systems Telemetry Computer terminal interface Typical.
