LM181E05-C4M2 - TFT LCD Module

📥 Download Datasheet

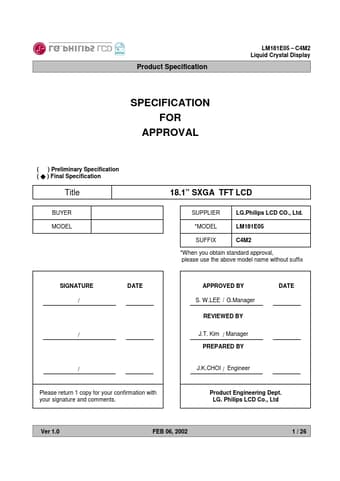

LM181E05-C4M2 Datasheet Preview — Preview of LM181E05-C4M2 PDF

Datasheet Details

Part number	LM181E05-C4M2
Manufacturer	LG
File Size	355.73 KB
Description	TFT LCD Module
Datasheet	LM181E05-C4M2_LG.pdf

LM181E05-C4M2 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVE FORMS COLOR INPUT DATA REFERANCE POWER SEQUENCE OPTICAL SPECIFICATIONS www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 6 8 11 12 13 14 15 19 22 23 23 23 24 24 24 25 MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS Ver 1.0 FEB 06, 2002 2 / 26 Datasheet pdf - http://www.D

Features

Active screen size Outline Dimension Pixel Pitch Pixel Format Color depth Luminance, white Power Consumption Weight Display operating mode Surface treatments Ver 1.0 18.1 inches (45.974cm) diagonal 389.0(H) x 317.2(V) x 27.0(D) mm(Typ. ) 0.2805 mm x 0.2805 mm 1280 horizontal By 1024 vertical Pixels RGB stripe arrangement 8-bits, 16,777,216 colors 250 cd/m2(Typ. ) Total 31.62 Watt(Typ. ), (4.32Watt @Vcc, 27.3 Watt @250cd/㎡ [Lamp=7mA]) 3100g (Typ. ) Transmissive mode, normally black Hard coating (3H),.
