LM1203 - RGB Video Amplifier System

National Semiconductor

📥 Download Datasheet

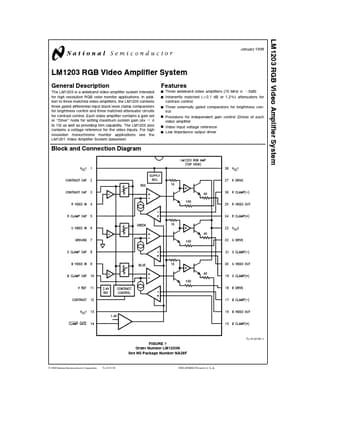

LM1203 Datasheet Preview — Preview of LM1203 PDF

Datasheet Details

Part number	LM1203
Manufacturer	National Semiconductor
File Size	559.98 KB
Description	RGB Video Amplifier System
Datasheet	LM1203_NationalSemiconductor.pdf

LM1203 Product details

Description

The LM1203 is a wideband video amplifier system intended for high resolution RGB color monitor applications In addition to three matched video amplifiers the LM1203 contains three gated differential input black level clamp comparators for brightness control and three matched attenuator circuits for contrast control Each video amplifier contains a gain set or ‘‘Drive’’ node for setting maximum system gain (Av e 4 to 10) as well as providing trim capability The LM1203 also contains a voltage refer

Features

Y Y Y Y Y Y b 3dB) Three wideband video amplifiers (70 MHz Inherently matched ( g 0 1 dB or 1 2%) attenuators for contrast control Three externally gated comparators for brightness control Provisions for independent gain control (Drive) of each video amplifier Video input voltage reference Low impedance output driver Block and Connection Diagram TL H 9178.
1 FIGURE 1 Order Number LM1203N See NS Package Number NA28F C1996 National Semiconductor Corporation TL H 9178 RRD-B30M56.
