LM12057A - 1.20 inch 5x7 Dot Matrix LED Display

Features

  • ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ Available options ¾ ¾ ¾ ¾ ¾ ¾ Alternative emitting luminosity: Standard or high brightness version Alternative emitted color Alternative segment color Alternative font Common Cathode is available Cropped terminal pins 39.10mm (1.20inch) digit high Dot size: Diameter 3.00mm Pitch: 4.6mm Wide viewing angle Range of emitted colors I. C. compatible Low power consumption White segment RoHS compliant Package Dimensions Notes: 1. All dimensions are in millimeters (inches), Toleranc.

📥 Download Datasheet

Datasheet Details

Part number LM12057A
Manufacturer LightKey
File Size 131.60 KB
Description 1.20 inch 5x7 Dot Matrix LED Display
Datasheet download datasheet LM12057A Datasheet

📁 Similar Datasheet

  • LM1205 - 130 MHz/85 MHz RGB Video Amplifier System with Blanking (National Semiconductor)
  • LM1205A - 130MHz/85MHz RGB Video Amplifier System (National Semiconductor)
  • LM120 - 3-Terminal Negative Regulators (National Semiconductor)
  • LM120 - 1.5 AMP NEGATIVE VOLTAGE REGULATOR (Seme LAB)
  • LM120 - 3-Terminal Negative Regulators (Texas Instruments)
  • LM120-05 - 1.5 AMP NEGATIVE VOLTAGE REGULATOR (Seme LAB)
  • LM120-05 - 1.5 AMP NEGATIVE VOLTAGE REGULATOR (Seme LAB)
  • LM120-12 - 1.5 AMP NEGATIVE VOLTAGE REGULATOR (Seme LAB)
  • LM120-15 - 1.5 AMP NEGATIVE VOLTAGE REGULATOR (Seme LAB)
  • LM1201 - Video Amplifier System (National Semiconductor)
Other Datasheets by LightKey
  • LM12057AD - 1.20 inch 5x7 Dot Matrix LED Display
  • LM12057AG - 1.20 inch 5x7 Dot Matrix LED Display
  • LM12057AO - 1.20 inch 5x7 Dot Matrix LED Display
  • LM12057APG - 1.20 inch 5x7 Dot Matrix LED Display
  • LM12057AR - 1.20 inch 5x7 Dot Matrix LED Display
  • LM12057AUA - 1.20 inch 5x7 Dot Matrix LED Display
  • LM12057AUB - 1.20 inch 5x7 Dot Matrix LED Display
  • LM12057AUG - 1.20 inch 5x7 Dot Matrix LED Display

Full PDF Text Transcription

Click to expand full text

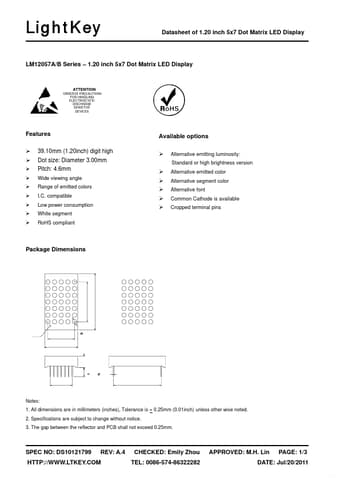

LightKey Datasheet of 1.20 inch 5x7 Dot Matrix LED Display LM12057A/B Series – 1.20 inch 5x7 Dot Matrix LED Display ATTENTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC DISCHARGE SENSITIVE DEVICES Features ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ Available options ¾ ¾ ¾ ¾ ¾ ¾ Alternative emitting luminosity: Standard or high brightness version Alternative emitted color Alternative segment color Alternative font Common Cathode is available Cropped terminal pins 39.10mm (1.20inch) digit high Dot size: Diameter 3.00mm Pitch: 4.6mm Wide viewing angle Range of emitted colors I.C. compatible Low power consumption White segment RoHS compliant Package Dimensions Notes: 1. All dimensions are in millimeters (inches), Tolerance is + 0.25mm (0.01inch) unless other wise noted. 2.
