DS90CR583 - LVDS 24-Bit Color Flat Panel Display Link

Product Overview

National Semiconductor

Part number	DS90CR583
Manufacturer	National Semiconductor
File Size	318.09 KB
Description	LVDS 24-Bit Color Flat Panel Display Link
Datasheet	DS90CR583 Datasheet

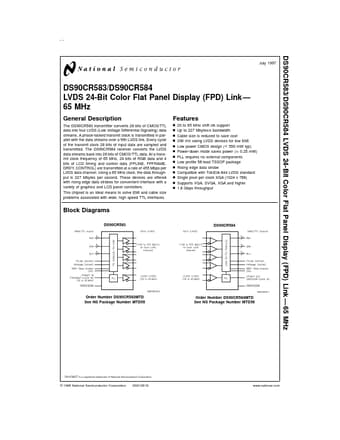

Additional preview pages of the DS90CR583 datasheet.

The DS90CR583 transmitter converts 28 bits of CMOS/TTL data into four LVDS (Low Voltage Differential Signaling) data streams.

n n n n n n n n n n n n n 20 to 65 MHz shift clk support Up to 227 Mbytes/s bandwidth Cable size is reduced to save cost 290 mV swing LVDS devices for low EMI Low power CMOS design ( < 550 mW typ) Power-down mode saves power ( < 0.25 mW) PLL requires no external components Low profile 56-lead TSSOP package Rising edge data strobe Compatible with TIA/EIA-644 LVDS standard Single pixel per clock XGA (1024 x 768) Supports VGA, SVGA, XGA and higher 1.8 Gbps throughput Block Diagrams DS90CR583 DS90C.
