DM9322 - Quad 2-Line to 1-Line Data Selectors / Multiplexers

National Semiconductor

📥 Download Datasheet

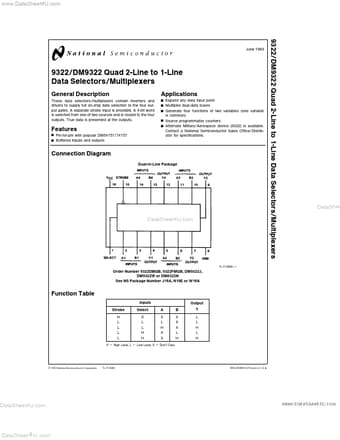

DM9322 Datasheet Preview — Preview of DM9322 PDF

Datasheet Details

Part number	DM9322
Manufacturer	National Semiconductor
File Size	291.53 KB
Description	Quad 2-Line to 1-Line Data Selectors / Multiplexers
Datasheet	DM9322_NationalSemiconductor.pdf

DM9322 Product details

Description

These data selectors multiplexers contain inverters and drivers to supply full on-chip data selection to the four output gates A separate strobe input is provided A 4-bit word is selected from one of two sources and is routed to the four outputs True data is presented at the outputs Applications Y Y Y Y Y

Features

Y Y Pin-for-pin with popular DM54157 74157 Buffered inputs and outputs Expand any data input point Multiplex dual-data buses Generate four functions of two variables (one variable is common) Source programmable counters Alternate Military Aerospace device (9322) is available Contact a National Semiconductor Sales Office Distributor for specifications Connection Diagram Dual-In-Line Package DataShee DataSheet4U. com TL F 6608.
1 Order Number 9322DMQB 9322FMQB DM9322J DM9322W or DM8.
