DM8866 - LED cathode drivers

Product Overview

National Semiconductor

Part number	DM8866
Manufacturer	National Semiconductor
File Size	96.02 KB
Description	LED cathode drivers
Datasheet	DM8866 Datasheet
Note	This datasheet PDF includes multiple part numbers: DM8866, DM8864. Please refer to the document for exact specifications by model.

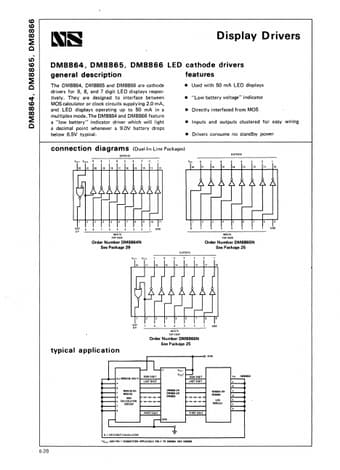

Additional preview pages of the DM8866 datasheet.

The DM8864, DM8865 and DM8866 are cathode drivers for 9, 8, and 7 digit LED displays respectively. They are designed to interface between MOS calculator or clock circuits supplying 2.0 mA, and LED displays operating up to 50 mA in a multiplex mode. The DM8864 and DM8866 feature a "low battery" indicator driver which will light a decimal point whenever a 9.0V battery drops below 6.5V typical.
Used with 50 mA LED displays.
"Low battery voltage" indicator.
Directly int.
