DM8800 - Dual Voltage Translator

Product Overview

National Semiconductor

Part number	DM8800
Manufacturer	National Semiconductor
File Size	181.45 KB
Description	Dual Voltage Translator
Datasheet	DM8800 Datasheet

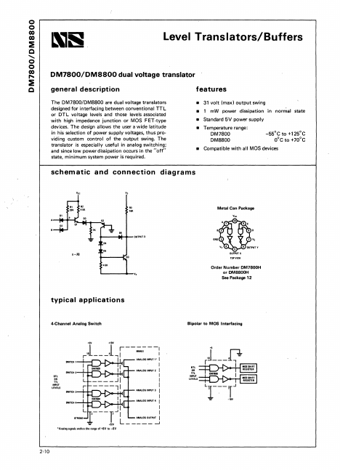

Additional preview pages of the DM8800 datasheet.

The DM7800/DM8800 are dual voltage translators designed for interfacing between conventional TTL or DTL voltage levels and those levels associated with high impedance junction or MOS FET-type devices_ The design allows the user a wide latitude in his selection of power supply voltages, thus providing custom control of the output swing. The translator is especially useful in analog switching; and since low power dissipation occurs in the "off" state, minimum system power is required.
