DM74LS374, DM74LS373 - Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops

National Semiconductor

📥 Download Datasheet

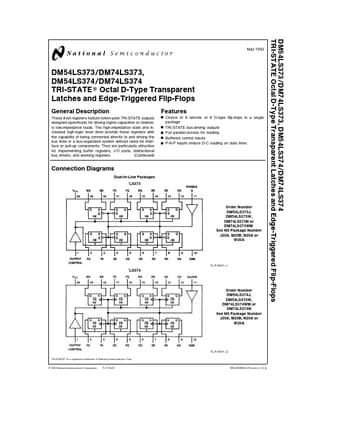

DM74LS374 Datasheet Preview — This datasheet PDF includes multiple part numbers: DM74LS374, DM74LS373. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	DM74LS374, DM74LS373
Manufacturer	National Semiconductor
File Size	160.99 KB
Description	Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops
Datasheet	DM74LS373_NationalSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: DM74LS374, DM74LS373. Please refer to the document for exact specifications by model.

DM74LS374 Product details

Description

These 8-bit registers feature totem-pole TRI-STATE outputs designed specifically for driving highly-capacitive or relatively low-impedance loads The high-impedance state and increased high-logic level drive provide these registers with the capability of being connected directly to and driving the bus lines in a bus-organized system without need for interface or pull-up components They are particularly attractive for implementing buffer registers I O ports bidirectional bus drivers and working re

Features

Y Y Y Y Y Choice of 8 latches or 8 D-type flip-flops in a single package TRI-STATE bus-driving outputs Full parallel-access for loading Buffered control inputs P-N-P inputs reduce D-C loading on data lines Connection Diagrams Dual-In-Line Packages ’LS373 Order Number DM54LS373J DM54LS373W DM74LS373N or DM74LS373WM See NS Package Number J20A M20B N20A or W20A TL F 6431.
1 ’LS374 Order Number DM54LS374J DM54LS374W DM74LS374WM or DM74LS374N See NS Package Number J20A M20B N20A or W20.
