The LS379 is a 4-bit register with buffered common Enable This device is similar to the LS175 but
Features
the common Enable rather than common Master Reset
Features
Y Y Y Y
Edge-triggered D-type inputs Buffered positive edge-triggered clock Buffered common enable input True and complement outputs
Connection Diagram
Dual-In-Line Package
Logic Symbol
TL F 10186.
2
TL F 10186.
1
VCC e Pin 16 GND e Pin 8
Order Number 54LS379DMQB 54LS379FMQB 54LS379LMQB DM74LS379M or DM74LS379N See NS Package Number E20A J16A M16A N16E or W16A
Pin Names E D0.
The following content is an automatically extracted verbatim text
from the original manufacturer datasheet and is provided for reference purposes only.
View original datasheet text

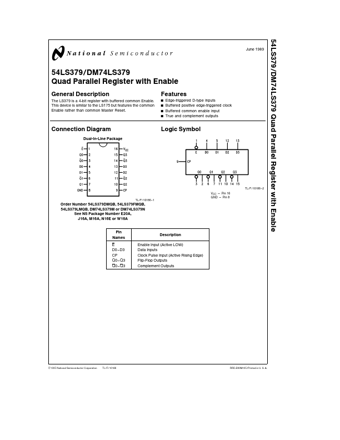

54LS379 DM74LS379 Quad Parallel Register with Enable
June 1989
54LS379 DM74LS379 Quad Parallel Register with Enable
General Description
The LS379 is a 4-bit register with buffered common Enable This device is similar to the LS175 but features the common Enable rather than common Master Reset
Features
Y Y Y Y
Edge-triggered D-type inputs Buffered positive edge-triggered clock Buffered common enable input True and complement outputs
Connection Diagram
Dual-In-Line Package
Logic Symbol
TL F 10186 – 2
TL F 10186 – 1
VCC e Pin 16 GND e Pin 8
Order Number 54LS379DMQB 54LS379FMQB 54LS379LMQB DM74LS379M or DM74LS379N See NS Package Number E20A J16A M16A N16E or W16A
Pin Names E D0–D3 CP Q0–Q3 Q0 – Q3
Description Enable Input (Active LOW) Data Inputs Clock Pulse Input (Active Rising Edg
