DM54LS374, DM54LS373 - Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DM54LS374, DM54LS373. Please refer to the document for exact specifications by model.

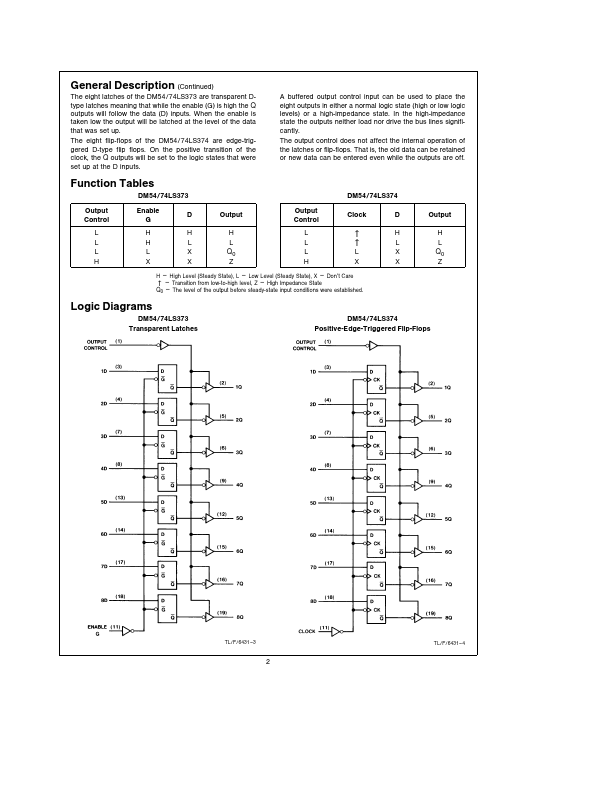

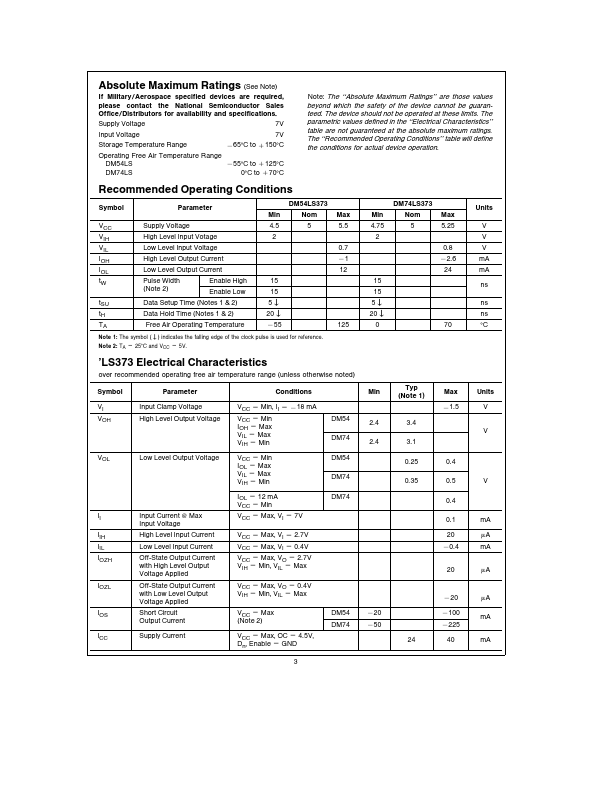

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number DM54LS374, DM54LS373
Manufacturer National Semiconductor
File Size 145.08 KB
Description Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops
Datasheet download datasheet DM54LS373-NationalSemiconductor.pdf
Note This datasheet PDF includes multiple part numbers: DM54LS374, DM54LS373.
Please refer to the document for exact specifications by model.

DM54LS374 Product details

Description

These 8-bit registers feature totem-pole TRI-STATE outputs designed specifically for driving highly-capacitive or relative- ly low-impedance loads The high-impedance state and in- creased high-logic level drive provide these registers with the capability of being connected directly to and driving the bus lines in a bus-organized system without need for inter- face or pull-up components They are particularly attractive for implementing buffer registers I O ports bidirectional bus drivers

Features
