DM54LS367A, DM54LS367AJ - Hex TRI-STATE Buffers

National Semiconductor

📥 Download Datasheet

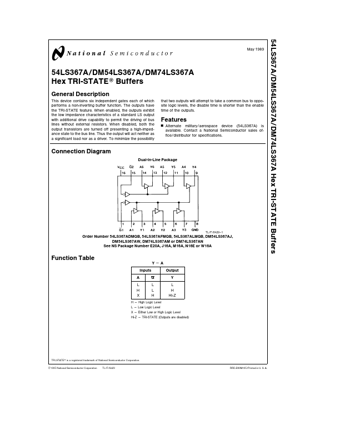

DM54LS367A Datasheet Preview — This datasheet PDF includes multiple part numbers: DM54LS367A, DM54LS367AJ. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	DM54LS367A, DM54LS367AJ
Manufacturer	National Semiconductor
File Size	137.28 KB
Description	Hex TRI-STATE Buffers
Datasheet	DM54LS367AJ_NationalSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: DM54LS367A, DM54LS367AJ. Please refer to the document for exact specifications by model.

DM54LS367A Product details

Description

This device contains six independent gates each of which performs a non-inverting buffer function The outputs have the TRI-STATE feature When enabled the outputs exhibit the low impedance characteristics of a standard LS output with additional drive capability to permit the driving of bus lines without external resistors When disabled both the output transistors are turned off presenting a high-impedance state to the bus line Thus the output will act neither as a significant load nor as a driver

Features

Y Alternate military aerospace device (54LS367A) is available Contact a National Semiconductor sales office distributor for specifications Connection Diagram Dual-In-Line Package TL F 6429.
1 Order Number 54LS367ADMQB 54LS367AFMQB 54LS367ALMQB DM54LS367AJ DM54LS367AW DM74LS367AM or DM74LS367AN See NS Package Number E20A J16A M16A N16E or W16A Function Table YeA Inputs Output AG Y LL HL XH L H Hi-Z H e High Logic Level L e Low Logic Level X e Either Low or High Logic Level Hi.
