DM54LS125A - Quad TRI-STATE Buffers

National Semiconductor

The DM54LS125A by National Semiconductor is a Quad TRI-STATE Buffers. Below is the official datasheet preview.

📥 Download Datasheet

DM54LS125A Quad TRI-STATE Buffers by National Semiconductor - Datasheet Preview — Official preview page of the **DM54LS125A** Quad TRI-STATE Buffers datasheet (National Semiconductor).

Datasheet Details

Part number	DM54LS125A
Manufacturer	National Semiconductor
File Size	122.93 KB
Description	Quad TRI-STATE Buffers
Datasheet	DM54LS125A_NationalSemiconductor.pdf

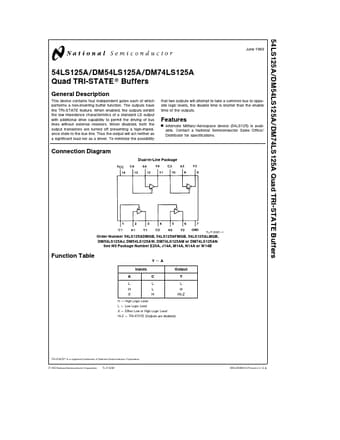

Additional preview pages of the DM54LS125A datasheet.

DM54LS125A Product details

Description

This device contains four independent gates each of which performs a non-inverting buffer function The outputs have the TRI-STATE feature When enabled the outputs exhibit the low impedance characteristics of a standard LS output with additional drive capability to permit the driving of bus lines without external resistors When disabled both the output transistors are turned off presenting a high-impedance state to the bus line Thus the output will act neither as a significant load nor as a drive

Features

Y Alternate Military Aerospace device (54LS125) is available Contact a National Semiconductor Sales Office Distributor for specifications Connection Diagram Dual-In-Line Package TL F 6387.
1 Order Number 54LS125ADMQB 54LS125AFMQB 54LS125ALMQB DM54LS125AJ DM54LS125AW DM74LS125AM or DM74LS125AN See NS Package Number E20A J14A M14A N14A or W14B Function Table YeA Inputs A L H X H e High Logic Level L e Low Logic Level X e Either Low or High Logic Level Hi-Z e TRI-STATE (Outputs are di.
