DM54LS11 - Triple 3-Input AND Gates

Name: DM54LS11
SKU: DM54LS11-231553

National Semiconductor

The DM54LS11 by National Semiconductor is a Triple 3-Input AND Gates. Below is the official datasheet preview.

Datasheet Details

Part number	DM54LS11
Manufacturer	National Semiconductor
File Size	120.79 KB
Description	Triple 3-Input AND Gates
Datasheet	DM54LS11_NationalSemiconductor.pdf

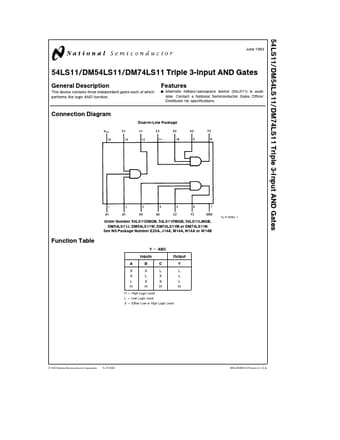

Additional preview pages of the DM54LS11 datasheet.

This device contains three independent gates each of which performs the logic AND function

Y Alternate military aerospace device (54LS11) is available Contact a National Semiconductor Sales Office Distributor for specifications Connection Diagram Dual-In-Line Package TL F 6350.
1 Order Number 54LS11DMQB 54LS11FMQB 54LS11LMQB DM54LS11J DM54LS11W DM74LS11M or DM74LS11N See NS Package Number E20A J14A M14A N14A or W14B Function Table Y e ABC Inputs A X X L H B X L X H C L X X H Output Y L L L H H e High Logic Level L e Low Logic Level X e Either Low or High Logic Level C1.
