DAC121S101QML 10 - 12-Bit Micro Power Digital-to-Analog Converter

DAC121S101QML Description

DAC121S101QML 12-Bit Micro Power Digital-to-Analog Converter with Rail-to-Rail Output May 6, 2010 DAC121S101QML 12-Bit Micro Power Digital-to-Analog.
The DAC121S101 is a full-featured, general purpose 12-bit voltage-output digital-to-analog converter (DAC) that can operate from a single +2.

DAC121S101QML Features

* Total Ionizing Dose 100 krad(Si) Single Event Latch-up 120 MeV-cm2/mg Guaranteed Monotonicity Low Power Operation Rail-to-Rail Voltage Output Power-on Reset to Zero Volts Output SYNC Interrupt Facility Wide power supply range (+2.7 V to +5.

DAC121S101QML Applications

* Battery-Powered Instruments Digital Gain and Offset Adjustment Programmable Voltage & Current Sources Programmable Attenuators Ordering Information NS Part Number DAC121S101WGRQV Flight Part DAC121S101WGMPR Pre-flight Prototype DAC121S101CVAL Ceramic Evaluation Board SMD Par

📥 Download Datasheet

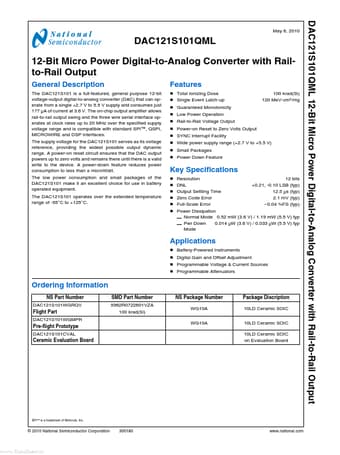

Preview of DAC121S101QML PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DAC121S101QML
Manufacturer
National Semiconductor
File Size
524.53 KB
Datasheet
DAC121S101QML_NationalSemiconductor.pdf
Description
10 - 12-Bit Micro Power Digital-to-Analog Converter
